Drawing to Sample: Custom Aluminum Extrusion Tooling And Process Timeline

Written by: Kay Albert | Senior B2B Extrusion Specialist at Vanway Tech

Last Updated: August 2026

Reviewed by: Engineer Zhang (Chief Process Engineer, 7+ Yrs in Aluminum Extrusion & Surface Finishing)

Technical Scope Verified: Profile Extrusion Tolerances (EN 12020), Decorative Anodizing Quality, DFM Feasibility & Surface Defect Control

For a typical custom aluminum extrusion project, Vanway Tech currently uses 10–20 calendar days as a planning range from approved drawing to first sample shipment for standard profiles. Large cross-sections, complex multi-hollow profiles, die corrections, special finishing, or added CNC work can extend the schedule. For these projects, a 20–35 day planning range may be more realistic.

These are Vanway Tech planning ranges, not industry-wide lead-time standards. The actual schedule depends on profile geometry, alloy and temper, drawing quality, tooling requirements, surface finish, secondary processing, production capacity, and customer approval.

For clarity, this article uses “first sample” to mean the first physical extrusion sample produced after the drawing and key specifications have been approved. Customer drawing revisions, customer approval time, international shipping, customs clearance, and later mass-production orders are not included unless stated otherwise.

The process normally follows this path:

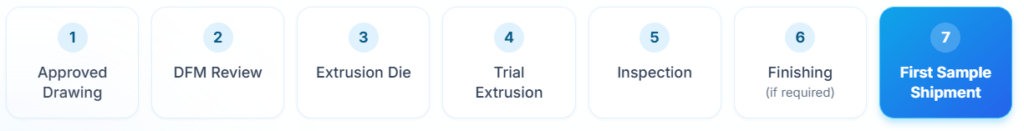

Custom Aluminum Extrusion Standard Execution Sequence – Vanway Tech

The most useful way to plan the project is to identify where time is actually spent and which buyer decisions can prevent avoidable delays.

How Long Does Custom Aluminum Extrusion Take?

The first sample does not come from tooling alone. Before a profile reaches the customer, the supplier normally needs to review the drawing, confirm extrusion feasibility, design and machine the die, run a trial extrusion, inspect the first profile, and complete any required finishing or secondary machining.

For a simple solid or semi-hollow profile, the process is normally shorter than for a large multi-hollow profile with thin walls, tight dimensions, or several secondary operations.

At Vanway Tech, the current planning range is:

Project type	Vanway planning range	Main time drivers
Standard custom profile	10–20 calendar days	Drawing review, die making, trial extrusion, inspection
Large cross-section	20–35 calendar days	Larger die, longer machining, higher press requirements
Complex multi-hollow profile	20–35 calendar days	Mandrel/porthole design, die tuning, trial corrections
Profile with anodizing or powder coating	Base extrusion time + finishing window	Finish type, color, line schedule, inspection
Profile with CNC or other secondary work	Base extrusion time + machining window	Number of operations, fixtures, tolerance requirements

These ranges should be treated as planning windows rather than fixed delivery promises. A complete drawing, clear tolerances, confirmed alloy and finish, and early approval of DFM comments can reduce avoidable delay.

How to Calculate Aluminum Profile Cost: Estimate Aluminum Extrusion Price

Custom Aluminum Extrusion Process and Lead Time

The table below shows the main production stages used for a custom extrusion project. The stage ranges are activity windows, not numbers that should simply be added together. Some projects do not require every secondary process, and some inspection or preparation work can be handled within the same production window.

Stage	Current Vanway planning window	Main work	What may extend the time
1. Drawing & DFM Review	1–3 days	Check wall thickness, hollow sections, critical dimensions, tolerances, alloy, temper, and finish	Missing dimensions, unclear tolerances, drawing revisions
2. Extrusion Die Design & Machining	5–12 days	Die design, steel preparation, CNC machining, EDM work, die finishing	Large die, complex hollows, thin walls, special die features
3. Trial Extrusion & First Inspection	2–5 days	Billet preparation, trial run, stretching/straightening, temper process where required, first-article inspection	Die adjustment, dimensional correction, profile distortion
4. Finishing & Final Sample Preparation	2–4 days when required	Cutting, anodizing, powder coating, CNC work, final inspection and packing	Finish queue, color change, extra machining, inspection requirements

What happens at each stage of Custom Aluminum Extrusion Process?

Stage 1 — Drawing and DFM

The supplier first checks whether the profile can be extruded with the requested alloy, press and die design. Critical dimensions should be clearly marked instead of applying very tight tolerances to every feature.

Stage 2 — Extrusion Die

The approved drawing is converted into an extrusion die. Complex hollow sections normally need more die features and more tuning than simple solid profiles.

Stage 3 — Trial Extrusion

The new die is tested on the press. The first profile is then checked for dimensions, shape, wall thickness where critical, straightness, surface condition, and the specified alloy and temper.

Stage 4 — Finishing and Sample Preparation

If the buyer needs anodizing, powder coating, PVDF, CNC machining, drilling, tapping, or another secondary process, these operations are added before the finished sample is shipped.

Aluminum Extrusion Die Inspecting – Vanway Tech

Technical Parameters That Affect the First Sample of Custom Aluminum Extrusion

The extrusion process uses different settings for different alloys, profile shapes, die designs, and press sizes. These values should therefore be treated as process ranges, not fixed specifications for every order.

For example, technical references for 6063 commonly place billet preheating around 480–500°C, while the actual production setting must be adjusted for profile geometry, die design, press capacity, and exit-temperature control. A technical extrusion reference also reports typical stretch levels of about 2–3% for profile straightening.

Parameter	Useful reference value	How it should be used
6063 billet temperature	About 480–500°C in a technical reference	Process starting range, not a fixed PO requirement
Profile stretching	About 2–3% in a technical reference	Used for straightening and stress control where required
Alloy	6063 / 6061 / 6005A, etc.	Must be specified on the drawing or PO
Temper	T5 / T6, etc.	Must be specified and verified against the agreed material standard
Die material	H13 tool steel is commonly used	Supplier process choice unless the buyer has a special requirement
Final dimensions	Drawing requirement	Check against the applicable extrusion tolerance standard

ASTM B221 covers aluminum-alloy extruded profiles and tubes and requires the specified alloy and temper and relevant mechanical properties to meet the applicable requirements.

5 Factors That Affect Custom Aluminum Extrusion Lead Time

1. Profile Geometry

Profile shape is one of the first factors that affects tooling time.

A simple solid profile normally needs a simpler die than a multi-hollow profile. Deep hollows, thin walls, small internal radii, and uneven wall thickness can make the die more complex and may increase the number of trial and correction cycles.

2. Drawing Quality

A complete drawing can save time before tooling starts.

The supplier should receive the final profile dimensions, alloy, temper, cut length, critical tolerances, surface finish, and secondary processing requirements.

For extrusion dimensions, buyers should use the applicable extrusion tolerance standard rather than placing an unnecessarily tight tolerance on every dimension. The Aluminum Association publishes ANSI H35.2-2024 for dimensional tolerances of aluminum mill products.

3. Die Correction After the First Trial

The first extrusion run is an important engineering check.

If the sample shows a dimensional or shape problem, the die may need adjustment. Based on the current Vanway planning data, a minor die adjustment may add about 1–3 days, while a major rework can add about 5–7 days. These are internal planning estimates, not fixed industry values.

4. Surface Finish and Secondary Processing

A mill-finish sample normally needs fewer steps than a fully finished part.

Anodizing, powder coating, PVDF, CNC machining, drilling, tapping, bending, punching, and special cut lengths all add work after extrusion.

The buyer should therefore state the final sample condition at the beginning of the project.

5. Production Capacity

A supplier may have the tooling ready but still need production capacity for the extrusion press, heat-treatment line, CNC equipment, or finishing line.

For this reason, the most useful quotation is not only:

“Tooling: 8 days.”

It should state:

Drawing approval → Tooling → First extrusion → Finishing → First sample shipment

with a clear expected calendar range for the complete process.

How Can Buyers Reduce Custom Aluminum Extrusion Delays?

Buyers can reduce avoidable delays by making the main technical decisions before the aluminum extrusion die is released for production.

Buyer input	What to provide	Why it matters
Drawing	Final 2D / 3D file	Reduces drawing revision cycles
Alloy	6063, 6061, 6005A, etc.	Affects extrusion and mechanical requirements
Temper	T5, T6, etc.	Affects heat-treatment and inspection requirements
Critical dimensions	Clearly marked	Helps the supplier focus inspection on functional features
Tolerances	Individual tolerance where needed	Avoids unnecessary die difficulty
Surface finish	Mill, anodized, powder, PVDF	Prevents later finish changes
Secondary processing	CNC, drilling, tapping, bending, punching	Allows tooling and sample planning to include all operations
Sample quantity	Exact number of pieces	Helps the supplier plan material and finishing
Inspection requirements	Drawing, standard, report type	Avoids inspection changes at the end

The most effective time-saving action is simple: freeze the drawing and key specifications before aluminum extrusion die machining begins.

A drawing revision after die production starts can cause another design review, die modification, or new trial.

Vanway Tech Custom Aluminum Extrusion Lead-Time Benchmark

The following figures are Vanway Tech planning benchmarks shown on this page, not a comparison with the whole extrusion industry.

Project stage	Current Vanway planning range	Main output
Drawing & DFM	1–3 days	Approved extrusion plan
Die design & machining	5–12 days	Trial-ready extrusion die
Trial extrusion & inspection	2–5 days	First aluminum extrusion sample
Finishing / final sample preparation	2–4 days when required	Finished sample ready for shipment
Standard project planning range	10–20 calendar days	First sample shipment
Large / complex project planning range	20–35 calendar days	First sample shipment

The final lead time depends on the profile, tooling, finish, secondary processing, production schedule, and whether a die correction is needed after the first trial.

What Is Not Included in the Stated Lead Time for Custom Aluminum Extrusion?

A supplier’s extrusion lead time is not always the same as the full project timeline.

Unless included in the quotation, the following items may require additional time:

Item	Usually outside the basic extrusion lead time?	Why
Customer drawing revision	Yes	Requires another technical review
Customer DFM approval	Depends on project	Work cannot proceed until key specifications are approved
Customer sample approval	Yes	Happens after sample delivery
International shipping	Yes	Depends on destination and carrier
Customs clearance	Yes	Controlled by import procedures
New finish or color change	May add time	May require another finishing schedule
Extra CNC work	May add time	Depends on operation count and tolerance
Major die correction	May add 5–7 days or more	Depends on the correction required

For a clear quotation, buyers should ask the supplier to state the lead-time start point and end point in writing.

For example:

Lead time starts after final drawing approval and ends when the first sample is ready for shipment.

This removes one of the most common causes of lead-time misunderstandings.

Drawing to First Sample Timeline of Custom Extruded Aluminum Profiles

The following is an example planning sequence for a standard custom profile. It is a process example, not a promise that every project will follow the same day-by-day schedule.

Approx. timing	Step	Buyer / Supplier action
Day 0	Drawing approval	Buyer confirms drawing, alloy, temper, tolerance and finish
Day 1–3	DFM review	Vanway reviews wall thickness, hollows, dimensions and die feasibility
Day 3–12	Die preparation	Die design, machining and preparation
Day 9–15	Trial extrusion	First extrusion run and sample inspection
Day 12–17	Correction if needed	Die adjustment or profile correction
Day 14–20	Sample preparation	Cutting, inspection, finish, packing and shipment preparation

The exact calendar days may overlap or shift depending on die progress, press availability, finishing requirements, and whether the first trial meets the drawing requirements.

What Should Buyers Confirm Before Extrusion Tooling Starts?

Before the die is released for machining, the buyer and supplier should confirm the main technical requirements.

Requirement	Example
Profile drawing	Final approved 2D or 3D drawing
Alloy	6063-T5, 6063-T6, 6061-T6, 6005A-T6
Temper	Final required temper
Critical dimensions	Clearly marked functional dimensions
Tolerance	Individual tolerance where required
Profile length	Extrusion length and cut length
Surface finish	Mill finish, anodizing, powder coating or PVDF
Color	RAL, anodizing color, or approved sample
Secondary processing	CNC, drilling, tapping, punching, bending
Sample quantity	Number of first samples required
Inspection report	Dimensions, material records, finish checks, if required
Packaging	Sample protection and shipping method

For aluminum extrusion dimensions, the buyer should use an applicable extrusion tolerance standard rather than copying a generic machining tolerance onto every feature. ANSI H35.2-2024 is the Aluminum Association’s current dimensional-tolerance standard for aluminum mill products.

For general drawing tolerances, check the standard named on the project drawing. As of October 2026, ISO 2768-1:1989 remains current, while ISO 2768-2:1989 is withdrawn and replaced by ISO 22081:2021. A new ISO 2768 edition is in the final publication stage and is expected to replace ISO 2768-1:1989.

How Vanway Tech Reviews a Custom Extrusion Before Tooling？

Before extrusion tooling starts, Vanway Tech reviews the approved drawing together with the required alloy, temper, tolerance, finish, and production quantity.

1. Profile Feasibility

The engineering team reviews:

wall thickness
hollow sections
internal corners
profile symmetry
critical dimensions
extrusion direction
required cut length

The goal is to identify features that may make die design, metal flow, or profile straightness more difficult.

2. Material Requirement

The drawing or purchase specification should state the required alloy and temper, such as 6063-T5, 6063-T6, or 6061-T6.

ASTM B221 covers aluminum-alloy extruded profiles and tubes and requires the applicable alloy, temper, and mechanical properties to meet the agreed specification.

3. Tolerance Review

Not every dimension needs the same tolerance.

Functional dimensions should be identified clearly. Less important dimensions can use the applicable general or extrusion tolerance standard.

This helps prevent unnecessary tooling difficulty and avoids spending extra production time on dimensions that do not affect assembly.

4. First Trial Check

After the die is tested, the first custom aluminum extrusion sample is checked against the approved drawing.

Depending on the project, inspection can include:

critical profile dimensions
wall thickness
cut length
straightness
twist
visible surface condition
alloy and temper records
finish requirements

The Aluminum Association provides guidance on measuring extrusion characteristics such as straightness and twist under ANSI H35.2 tolerance tables.

5. Die Correction

If the first trial does not meet a critical requirement, the die may need adjustment before the next trial.

This is one reason why a realistic lead-time quotation should include a possible correction window rather than assuming that every new die produces a perfect first sample.

Vanway-Tech 丨 Premium Quality Custom Aluminum Extrusions Manufacturer and Exporter

Have a Custom Aluminum Extrusion Drawing?

Send your 2D or 3D drawing, alloy, annual volume, critical tolerances, surface finish, and required sample quantity.

Vanway Tech can review the profile for extrusion feasibility, tooling requirements, secondary processing, and the expected first-sample timeline.

Send Your Drawing → Get a Custom Extrusion Lead-Time Review

CHOOSE THE BEFITTING ALUMINUM EXTRUSIONS

Custom Aluminum Extrusions

Aluminum Heat Sinks

Industrial Aluminum Extrusions

T-Slot Aluminum Extrusions

Decorative Aluminum Trim & Led Aluminum Channel Profiles

Window & Door Aluminum Profiles

Aluminum Extrusion Enclosures

Structural Aluminum Extrusion Framing

Aluminum Angle Extrusions

Extruded Aluminum Tubes

Aluminum U Channel Profiles

CNC Machined Aluminum Parts

Get A Quote

FAQs About Custom Aluminum Extrusion Lead Time

Q1. How long does a custom aluminum extrusion die take?

A: For Vanway Tech’s current planning range, standard die preparation is about 5–12 days after the drawing and main specifications are approved. Large or complex multi-hollow dies may take longer because of additional machining and trial work.

Q2. How long does it take to receive the first aluminum extrusion sample?

A: Vanway Tech currently uses 10–20 calendar days as a planning range for a standard custom profile from approved drawing to first sample shipment. Large cross-sections and complex multi-hollow profiles may require about 20–35 days.

Q3. Does a hollow aluminum profile take longer to make?

A: Usually, yes. Hollow profiles need more complex die features than simple solid profiles. Multi-hollow sections, thin walls, small internal corners, and uneven wall thickness can also increase the chance of die adjustment after the first trial.

Q4. What information should buyer send before requesting an extrusion sample?

A: Send the final profile drawing, alloy, temper, profile length, critical dimensions, tolerances, surface finish, secondary processing requirements, sample quantity, and target annual volume.
Complete information helps the supplier review the project before die machining starts.

Q5. Can changing the drawing delay the first sample?

A: Yes. A drawing change after die machining starts may require a new DFM review, die modification, or another extrusion trial.
The safest approach is to freeze the main profile geometry and critical dimensions before tooling starts.

Q6. Does anodizing or powder coating add to the lead time?

A: Yes. A mill-finish sample usually needs fewer processing steps. Anodizing, powder coating, PVDF, color matching, CNC machining, drilling, and tapping can add processing time. Vanway Tech currently lists about 2–4 days for finishing and final sample preparation when these processes are required, subject to the production schedule.

Q7. Is customer approval included in the extrusion lead time?

A: Not automatically. The quotation should clearly state whether lead time ends at sample readiness, sample shipment, or customer receipt.
Customer drawing revisions, sample approval, international shipping, and customs clearance should be listed separately when they are not included.

Q8. What can make a custom extrusion sample take longer than planned?

A: The most common project-specific causes are:
complex multi-hollow geometry
thin or difficult wall sections
missing drawing information
very tight critical tolerances
late alloy or finish changes
die correction after the first trial
extra CNC work
finishing-line capacity
For this reason, buyers should ask for a complete drawing-to-sample timeline, not only a tooling lead time.

Drawing to Sample: Custom Aluminum Extrusion Tooling And Process Timeline

Table of Contents
