Vanway Precision Materials Tech Co.,Ltd
Decorative Aluminum Profiles丨Aluminum Extrusion Trims
What is Decorative Aluminum Profile?
Decorative Aluminum Profiles
Decorative Aluminum Profiles are high-grade 6063-T5 aluminum extrusions engineered for modern architectural decoration. Featuring premium finishes like anodized, brushed, and polished coatings, these corrosion-resistant profiles are widely used for aluminum wall trims, ceiling moldings, tile trims, and partition frames—delivering effortless installation and a sophisticated aesthetic finish.
What Are The Advantages of Architectural Aluminum Profiles?
Technical Specifications of Decorative Aluminum Profiles丨Aluminum Extrusion Trims
| Parameters | Specifications | Typical Decorative Applications |
|---|---|---|
| Alloy & Temper | 6063-T5 (mainstream), 6463 (premium bright finish), 6061-T6 | Indoor decorative frames, luxury aluminum molding, fine architectural ornamentation |
| Surface Finishes | Window series: 55mm, 60mm, 65mm, 70mm, 80mm, 90mm Curtain wall: 60mm×60mm, 80mm×80mm, 100mm×100mm Curtain wall mullions: 120mm–200mm width | Brushed aluminum trim, anti-fading wall decoration, elegant interior decorative strips |

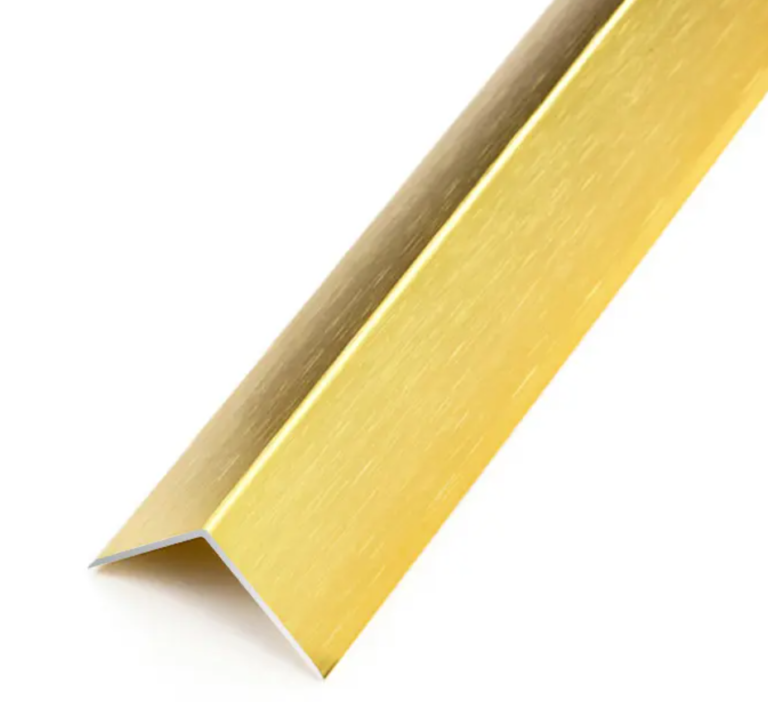

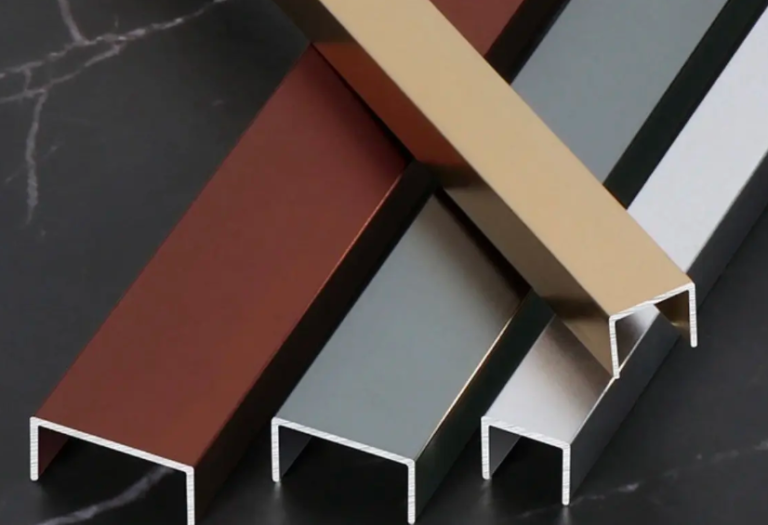

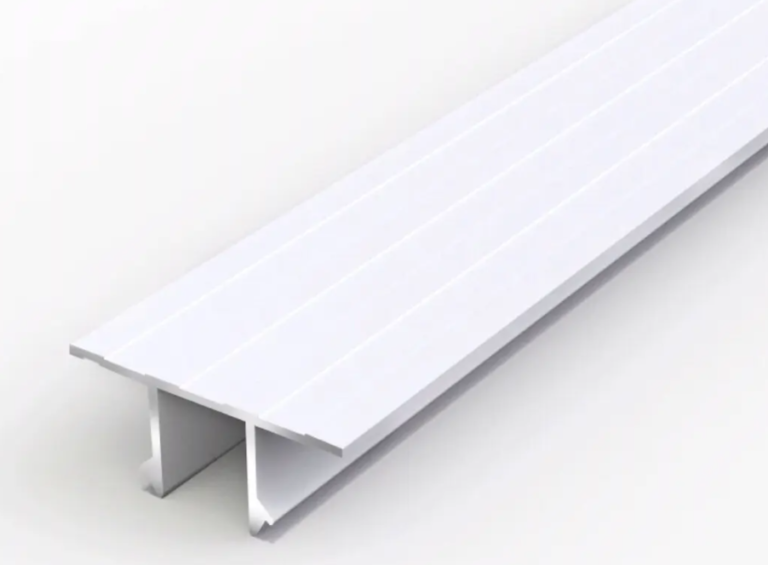

| Profile Shapes | L-shape, U-channel, T-bar, corner trim, flat bar, customized decorative cross-sections | Ceiling moldings, wall edge trim, cabinet edging, partition decorative frames |
| Wall Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, up to 3.0mm customizable | Slim decorative trim, heavy-duty architectural decorative extrusion components |
| Standard Length | 5.85m, 6.0m fixed length; custom cutting up to 12m maximum | Modular interior decoration, bulk construction decorative aluminum projects |
| Mechanical Performance | 6063-T5: Tensile strength ≥160MPa, anti-deformation, high scratch resistance | Long-service-life decorative trim without bending or structural damage |

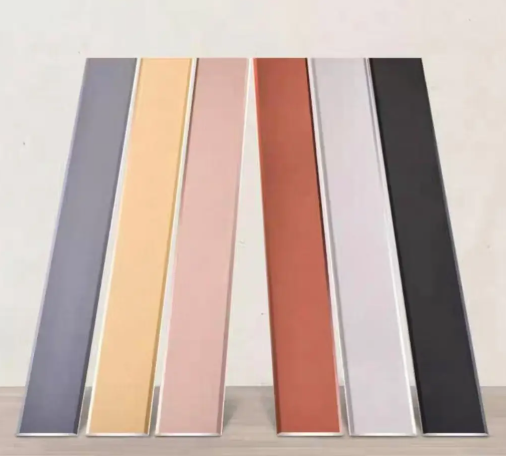

| Color Range | Silver, black, champagne, gold, bronze, full RAL custom colors, wood grain tones | Interior aesthetic decoration, customized style architectural aluminum profiles |
| Global Quality Standards | ASTM B221, EN 755, GB 5237 architectural aluminum extrusion standards | international construction projects, high-standard decorative engineering supply |
Technical Notice
All aluminum profile alloy grades (6063-T5, 6061-T6, 6005-T5), mechanical performance metrics (tensile strength ≥ 160 MPa to ≥ 260 MPa; yield strength ≥ 110 MPa to ≥ 240 MPa), and high-precision dimensional extrusion tolerances specified for our Decorative Aluminum Profiles and Aluminum Extrusion Trims comply strictly with ASTM B221 standards for structural architectural extrusions.
Surface finishing protection metrics—including the 10–25 μm clear/color anodization layer thickness, premium architectural powder coating adhesion, and 48+ hour salt spray corrosion resistance—are fully tested and verified in accordance with ISO 9227 artificial atmosphere corrosion testing standards.
Best Seller
Decorative Aluminum Profiles丨Aluminum Extrusion Trims

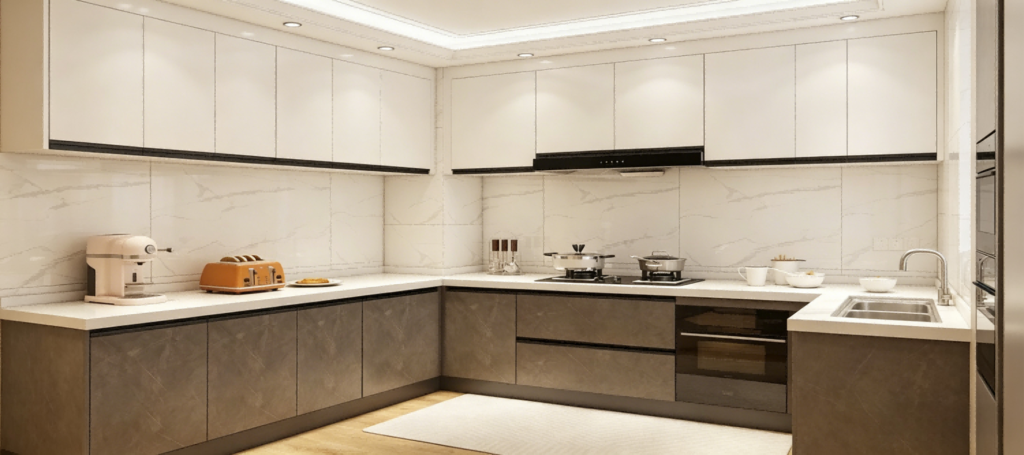

Why Decorative Aluminum Profiles Are Ideal for Cabinet Border Decoration?
Undeniably, decorative aluminum profiles are the leading choice for cabinet border decoration across kitchens, commercial spaces, and high-end interiors. Consequently, they have largely surpassed traditional wood, plastic, and PVC materials. By combining beauty, durability, and practicality, they are consistently favored by interior designers, homeowners, and custom furniture makers alike.
High aesthetic versatility: Primarily, with various surface treatments and slim cross-sections, these profiles seamlessly fit diverse cabinet styles. As a result, they effortlessly create a premium, refined look.
Superior durability: Furthermore, because manufacturers forge them from premium 6063-T5 alloy, they resist scratches, dents, and corrosion significantly better than wood or plastic. Therefore, they provide long-lasting finishes alongside remarkably low upkeep.
Excellent moisture resistance: Equally important, these extrusions remain completely impervious to water, swelling, and mold. Thus, they are perfectly suited for humid kitchen and bathroom environments. Additionally, homeowners can clean them with absolute ease.
Easy installation & precise fitting: Moreover, since the aluminum material is lightweight and highly processable, contractors actively reduce their labor costs. Subsequently, the profiles fit cabinet edges flawlessly while they simultaneously sustain overall structural stability.
Sustainable and cost-effective: Finally, because the aluminum is fully recyclable, facility managers drastically cut long-term replacement costs. Ultimately, they serve as highly affordable yet high-quality metal trims for both residential and commercial applications.
In summary, decorative aluminum profiles perfectly combine aesthetic flexibility, durability, moisture resistance, easy installation, and sustainability. Consequently, these combined factors make them the ideal choice for cabinet border decoration. Specifically, they directly address the unique challenges of daily cabinet use—such as physical wear, moisture exposure, and design versatility—while they continuously deliver long-term value. Therefore, they have firmly solidified their position as an absolute staple in modern cabinetry design.
High aesthetic versatility: Primarily, with various surface treatments and slim cross-sections, these profiles seamlessly fit diverse cabinet styles. As a result, they effortlessly create a premium, refined look.
Superior durability: Furthermore, because manufacturers forge them from premium 6063-T5 alloy, they resist scratches, dents, and corrosion significantly better than wood or plastic. Therefore, they provide long-lasting finishes alongside remarkably low upkeep.
Excellent moisture resistance: Equally important, these extrusions remain completely impervious to water, swelling, and mold. Thus, they are perfectly suited for humid kitchen and bathroom environments. Additionally, homeowners can clean them with absolute ease.
Easy installation & precise fitting: Moreover, since the aluminum material is lightweight and highly processable, contractors actively reduce their labor costs. Subsequently, the profiles fit cabinet edges flawlessly while they simultaneously sustain overall structural stability.
Sustainable and cost-effective: Finally, because the aluminum is fully recyclable, facility managers drastically cut long-term replacement costs. Ultimately, they serve as highly affordable yet high-quality metal trims for both residential and commercial applications.
In summary, decorative aluminum profiles perfectly combine aesthetic flexibility, durability, moisture resistance, easy installation, and sustainability. Consequently, these combined factors make them the ideal choice for cabinet border decoration. Specifically, they directly address the unique challenges of daily cabinet use—such as physical wear, moisture exposure, and design versatility—while they continuously deliver long-term value. Therefore, they have firmly solidified their position as an absolute staple in modern cabinetry design.
Why Choose Vanway Tech as Your Preferred Decorative Aluminum Profiles Supplier?
We work to an extremely high standard of customer satisfaction
Cost-EffectiveVanway Tech adopts high-grade aluminum ingots, strict full-cycle quality control and mass production to produce ISO-certified decorative aluminum profiles featuring light weight, high strength and cost efficiency. With optimized production and material utilization, it offers affordable, high-quality aluminum solutions suitable for all project scales.
Custom SolutionVanway Tech provides custom special-shaped decorative aluminum profiles from customer drawings or samples, with internal mold development and quick proofing. Specializing in 6063/6061/7075 alloys for decoration, it offers customized solutions for furniture, cabinets, architectural trim and more to fit various design concepts.
Export ExpertiseBoasting professional export capabilities, Vanway Tech guarantees efficient global shipping and smooth customs clearance for decorative aluminum profiles. Its products meet CE, RoHS and ASTM standards with full certifications, alongside professional logistics, safe packaging and reliable on-time bulk deliveries globally.
One-stop ServiceVanway Tech offers one-stop precision processing for decorative aluminum profiles, covering extrusion, CNC machining and surface treatments. It also provides full technical support, quick pre-sales service and complete after-sales follow-up to resolve all related problems efficiently.
How to Select Suitable Aluminum Profile for decorative Project?
We Provide Reliable Services
Step 1: Requirement Confirmation & CAD DesignShare your product ideas, hand sketches, or exact engineering drawings with our team. We define technical specifications and produce accurate 2D/3D CAD models for your review.
Step 2: Custom Mold Design & Toolingengineering team creates specialized extrusion dies tailored to your profile geometry. We rigorously test mold flow to ensure precise dimensional accuracy and material strength.
Step 3: Sample Production & Client Approvalextrude initial trial samples and apply specified surface finishes for your evaluation. Bulk production begins only after receiving your official sample sign-off.
Step 4: Bulk Manufacturing & Surface Treatmentproceed with full-scale extrusion using premium 6063 aluminum alloys. Profiles undergo precision aging, cutting, and custom finishes like anodizing or powder coating.
Step 5: Rigorous Inspection & Protective PackagingEvery batch undergoes strict dimensional and surface inspection against quality standards. Passed profiles are wrapped in protective film and packed securely for export.
Step 6: Global Shipping & Client Deliverycontainer loading, export documentation, and international ocean or air freight. Goods are delivered safely to your warehouse with full post-delivery support.
FAQs
Frequently Asked Questions of Decorative Aluminum Profiles.
Q: Which aluminum alloy is most suitable for decorative aluminum profiles?
A: 6063-T5 aluminum alloy is the mainstream and optimal material for decorative aluminum profiles due to its great extrudability, fine metallic texture and moderate hardness. Premium 6463 aluminum alloy is also supplied for ultra-bright polished decorative trim. Both alloys are ideal for cabinet borders, ceiling moldings and interior ornamental aluminum extrusions with stable performance.
Q: What surface finishes do your decorative aluminum extrusions support?
A: We provide full high-demand surface treatments: anodizing, brushed finish, mirror polishing, powder coating, wood grain transfer and matte coating. These finishes own excellent scratch resistance, anti-fading property and color stability, widely applied in furniture edge trim, wall decorative strips and luxury indoor decorative aluminum profiles.
Q: What cross-sectional shapes are available for decorative aluminum trim profiles?

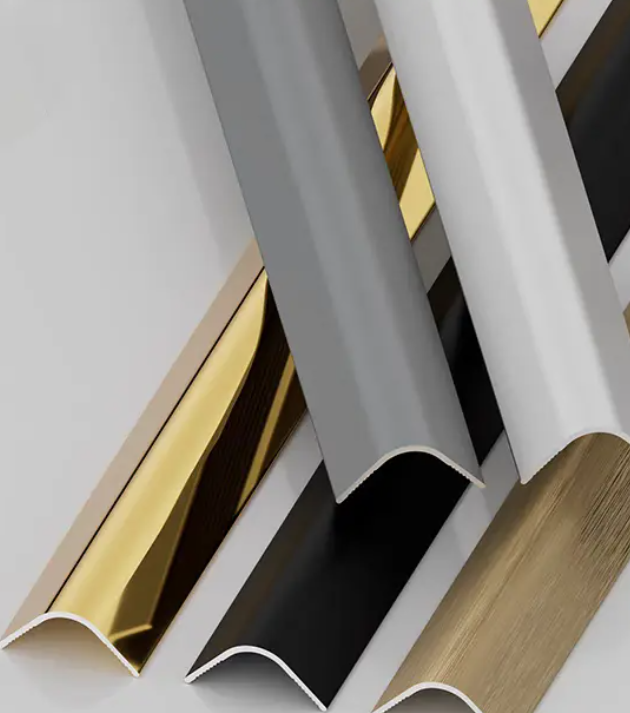

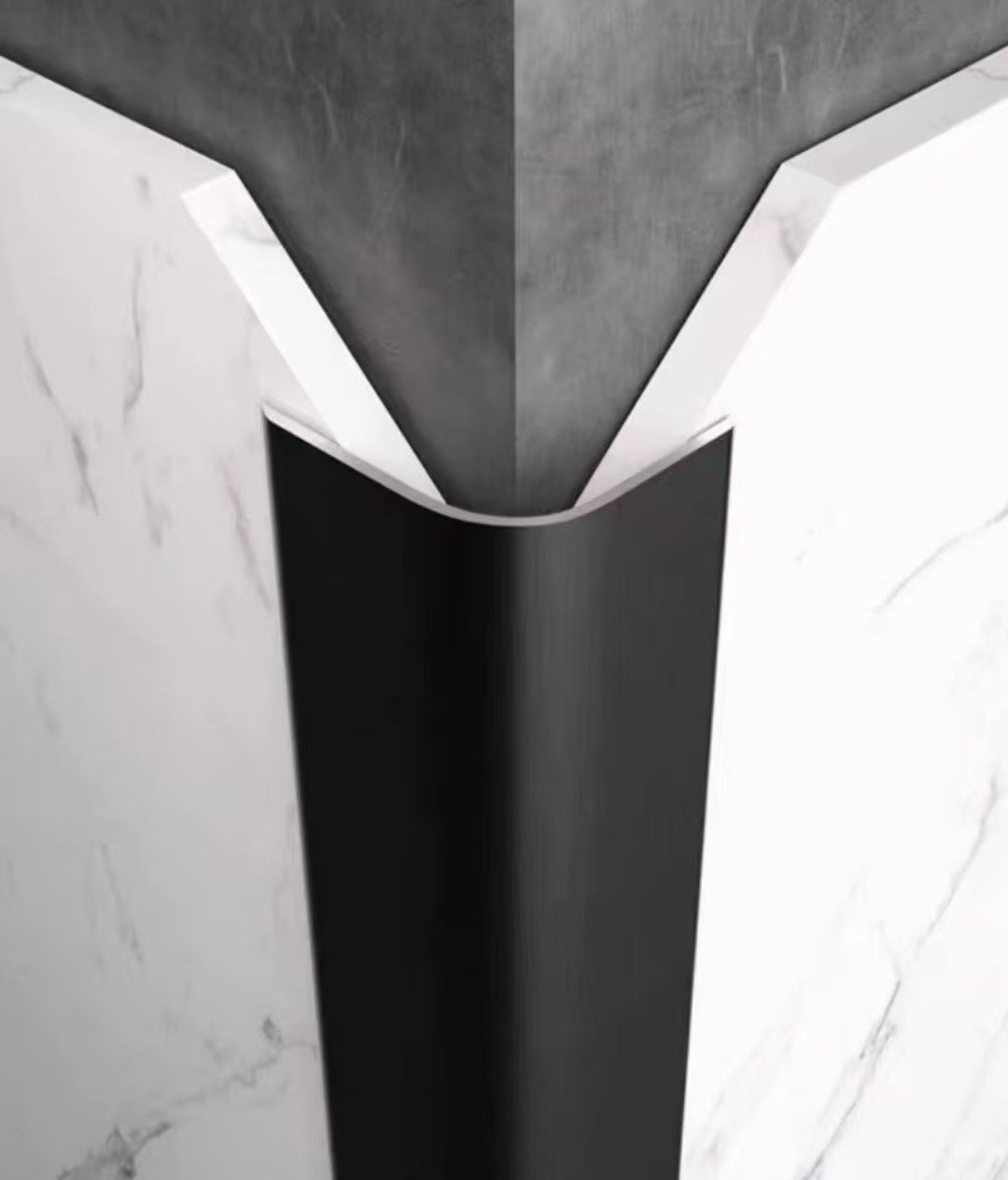

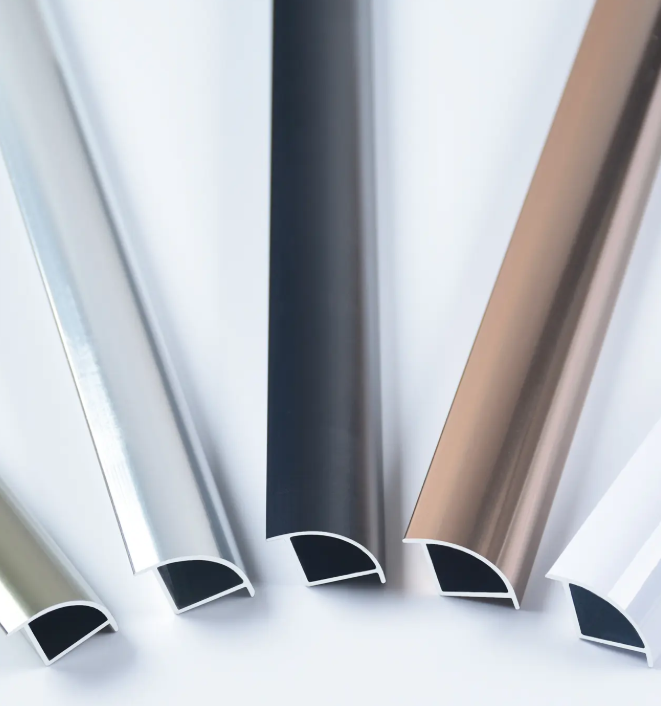

A: We cover all mainstream decorative shapes, including L-shaped trim, U-channel profile, flat bar, corner edging, T-bar molding and irregular custom cross-sections. Standard wall thickness ranges from 0.8mm to 3.0mm, perfectly fitting cabinet decoration, ceiling edging and furniture frame border projects.
Q: Do you offer customized decorative aluminum profiles for furniture projects?
A: Yes, Vanway Tech provides full custom service for decorative aluminum profiles, including customized sizes, lengths, colors, shapes and special edge designs. With fast mold opening and short lead time, we supply tailor-made aluminum trim for cabinet decoration, interior renovation and commercial ornamental engineering with reliable MOQ.
