70mm Thermal Break Aluminum Profile 24mm Strip for Shopping Mall Storefront Windows and Doors

Introduction Of 70mm Thermal Break Aluminum Profile 24mm Strip:

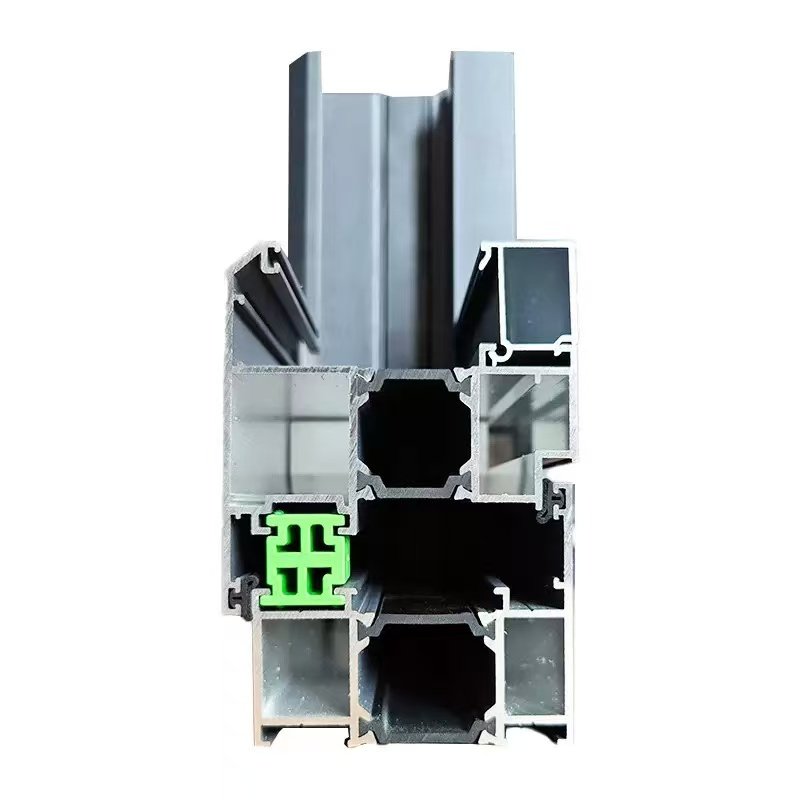

This 70mm series thermal break aluminum profile is equipped with a 24mm insulated thermal strip, crafted from premium 6063-T5 high-grade aluminum alloy. Designed exclusively for shopping mall storefront windows and doors, it adopts advanced thermal break bridge isolation technology to perfectly block heat and cold transfer. With reinforced integrated extrusion structure, it features strong wind pressure resistance, excellent sound insulation and weatherproof performance. It fully complies with US commercial building energy-saving standards, ideal for high-traffic mall storefronts, commercial complex facade windows and door systems, supporting long-term stable use in all-weather outdoor and indoor commercial environments.

Product Specification Table Of 70mm Thermal Break Aluminum Profile 24mm Strip:

Specification Item	Detailed Parameter
Product Model	70mm Thermal Break Window & Door Profile
Profile Width	70mm
Thermal Strip Width	24mm PA66 Glass Fiber Strip
Wall Thickness	1.8mm Standard Commercial Gauge
Aluminum Alloy Grade	6063-T5
Standard Profile Length	6m / Custom Cut Available
Compatible Glass	10mm–15mm Tempered / Double Glazed Insulated Glass
Thermal Insulation Grade	US Commercial Energy Star Standard
Surface Coating Thickness	12μm – 80μm Optional
Wind Resistance Grade	High Grade for Commercial Building Facade
Certifications	ISO9001, SGS, Compliant with USA Commercial Construction Code

Application Scenarios Of 70mm Thermal Break Aluminum Profile 24mm Strip:

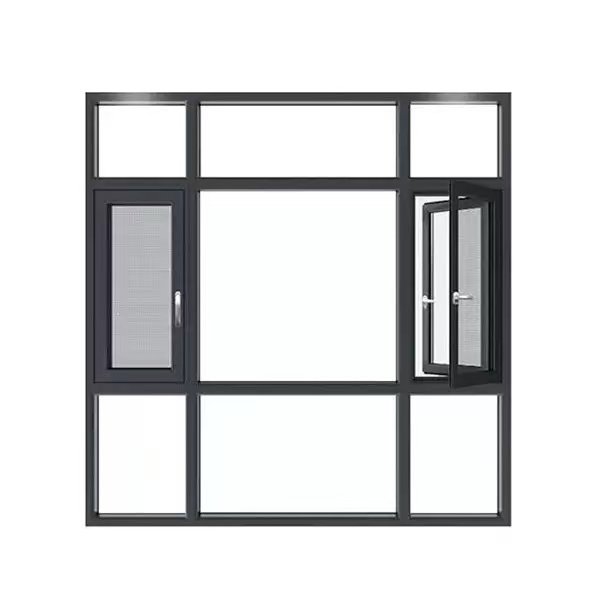

• Shopping mall front entrance windows and glass door frames
• Commercial plaza retail storefront windows & partition doors
• Shopping center floor-to-ceiling large glass windows
• Restaurant, café and brand chain store facade doors and windows
• Office complex ground floor commercial shop windows
• Indoor pedestrian street partition thermal break window systems
• Hotel and resort commercial supporting doors and windows
• Urban commercial street exterior insulation door and window projects

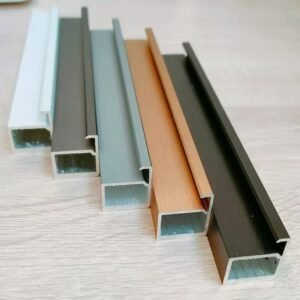

Product Surface Treatment Methods Of 70mm Thermal Break Aluminum Profile 24mm Strip:

1. Powder CoatingClassic mainstream finish with 60–80μm coating, multiple matte and glossy colors, scratch-resistant, stain-proof and easy daily cleaning, perfect for mall public area decoration.
2. Anodizing10–15μm oxidation film with silver, champagne and bronze tones, metallic texture, anti-corrosion and fade-resistant for long-term outdoor use.
3. PVDF Fluorocarbon Spraying35–40μm high weather resistance coating, anti-UV and salt fog resistant, suitable for coastal shopping malls and open-air commercial plazas.
4. Wood Grain Transfer PrintingRealistic wood grain appearance, combines thermal insulation performance with decorative aesthetics for high-end mall boutique storefronts.

Core Advantages Of 70mm Thermal Break Aluminum Profile 24mm Strip:

1. 70mm widened profile structureReinforced cavity design improves overall stability, strong wind resistance, suitable for large size mall floor-to-ceiling glass windows.
2. 24mm PA66 thermal break stripEffectively isolates cold and heat conduction, greatly reduces air conditioning energy consumption, meets US commercial energy-saving requirements.
3. Premium 6063-T5 aluminum materialHigh hardness and toughness, not easy to deform, adapts to frequent opening and closing of mall high-flow storefront doors and windows.
4. Excellent sound & heat insulationBlocks outdoor traffic noise and temperature difference, creates a comfortable indoor shopping environment.
5. Multiple surface finish optionsCustomizable colors and textures to match different mall decoration styles and brand image positioning.
6. Strict US standard dimension designCompatible with mainstream American window and door hardware accessories, easy for installation and replacement.
7. Super weather resistanceAnti-rust, anti-fading and anti-aging, suitable for long-term use in high temperature, cold and humid climate areas of the United States.
8. Custom cutting serviceStandard 6m length, support personalized cutting to match on-site project installation sizes, no material waste.

FAQs Of 70mm Thermal Break Aluminum Profile 24mm Strip:

Q1: What material is the 24mm thermal break strip made of?

A: It adopts high-quality PA66 glass fiber thermal insulation strip, the mainstream thermal break material for American commercial aluminum profiles, with high temperature resistance and non-deformation.

Q2: What is the wall thickness of this 70mm thermal break aluminum profile?

A: The standard commercial wall thickness is 1.8mm, which is thickened and reinforced to bear large glass weight and adapt to frequent use in shopping malls.

Q3: What kind of glass can this profile match?

A: It is compatible with 10–15mm single tempered glass and double glazed insulated glass, most commonly used for energy-saving storefront windows and doors in shopping malls.

Q4: What is the main function of the 24mm thermal break strip?

A: The 24mm widened thermal strip cuts off the aluminum heat conduction path, improves thermal insulation performance, reduces cooling and heating costs for mall shops all year round.

Q5: Can the profile length be customized for my mall project?

A: Yes. The standard length is 6 meters, we support free custom cutting to any required size to adapt to different window and door heights.

Q6: Is this profile suitable for open-air and coastal shopping malls?

A: Absolutely. Equipped with PVDF fluorocarbon or anodized surface treatment, it can resist UV, rain erosion and coastal salt fog corrosion for long-term outdoor use.

Q7: Does this profile fit American standard window and door hardware?

A: Yes. The groove and structural size are designed in accordance with US commercial building standards, perfectly matching local rollers, locks and sealing accessories.

Q8: What is the service life of this thermal break aluminum profile?

A: With regular powder coating, the service life reaches 18–22 years; with PVDF fluorocarbon treatment, it can serve more than 25 years even in harsh outdoor commercial environments.

---
