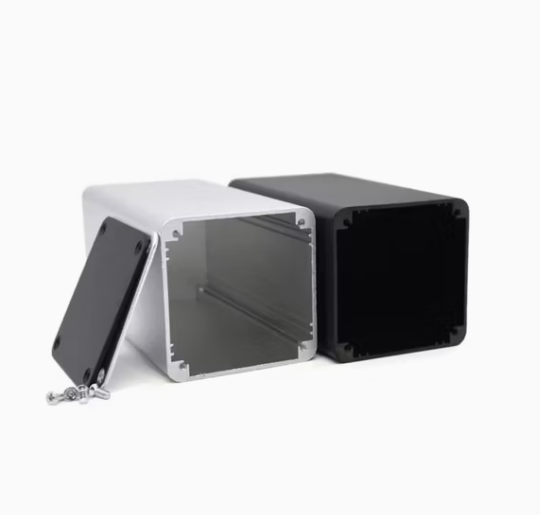

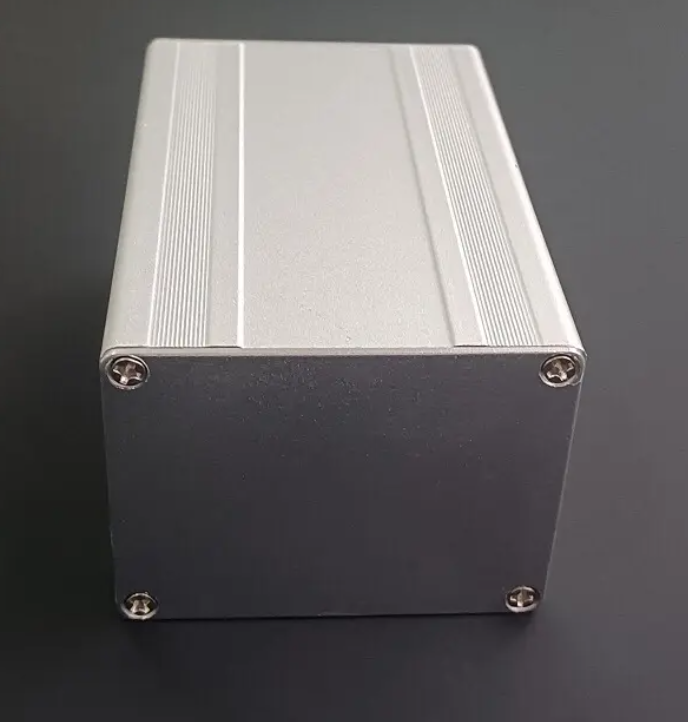

Electromagnetic Shielding Aluminum Extrusion Enclosures for Wireless Communication Module

Introduction Of Electromagnetic Shielding Aluminum Extrusion Enclosures:

Engineered for high-performance wireless communication systems, these electromagnetic shielding (EMI/RFI) aluminum extrusion enclosures are fabricated from premium 6061-T6 or 5052 aluminum alloy—materials renowned for excellent electrical conductivity and structural rigidity. The integrated extrusion design, combined with precision-sealed seams and conductive gaskets, delivers exceptional shielding effectiveness (80–100 dB) across 30 MHz–1 GHz frequency bands, effectively blocking external electromagnetic interference and preventing internal signal leakage. Compliant with MIL-STD-461 and EN 55032 standards, these enclosures ensure stable operation of wireless communication modules in noisy electromagnetic environments, making them the preferred choice for 5G, IoT, industrial wireless, and automotive communication applications.

Specification Table Of Electromagnetic Shielding Aluminum Extrusion Enclosures:

Parameter	Details
Material	6061-T6/5052 aluminum alloy (electrical conductivity: 33–40 MS/m)
Shielding Effectiveness	80–100 dB @ 30 MHz–1 GHz; up to 110 dB @ 1–10 GHz (customizable)
Wall Thickness	2.0–4.0 mm (optimized for conductivity and structural integrity)
Protection Grade	IP54 (standard) / IP65 (sealed version with conductive gaskets)
Surface Treatment	Conductive anodization (10–20μm), electrostatic powder coating (conductive grade), or chemical conversion coating
Operating Temperature	-55℃ ~ 130℃
Length Range	80 mm – 2500 mm (custom cuttable; minimum order length: 50 mm)
Installation Type	DIN rail-mount, panel-mount, wall-mount, or custom mounting brackets
Sealing Material	Conductive foam gasket (Ni-Cu-Ni plated), beryllium copper fingers
Dimensional Tolerance	±0.03 mm (CNC machining precision)
Certifications	MIL-STD-461, EN 55032, FCC Part 15, RoHS, ISO 9001
Weight	0.3–3.8 kg (varies by size, wall thickness, and shielding configuration)

Application Scenarios Of Electromagnetic Shielding Aluminum Extrusion Enclosures:

• 5G small cell base stations and macro base station communication modules
• IoT wireless gateway and sensor communication modules (WiFi, Bluetooth, LoRa)
• Industrial wireless control systems (WirelessHART, ISA100.11a)
• Automotive telematics and V2X (Vehicle-to-Everything) communication modules
• UAV (drone) remote control and data transmission modules
• Smart home wireless communication hubs (ZigBee, Z-Wave)
• Medical wireless monitoring device communication units
• Military and aerospace wireless communication equipment

Surface Treatment & Product Advantages Of Electromagnetic Shielding Aluminum Extrusion Enclosures:

Surface Treatment:

Three specialized surface treatment options are available to balance shielding performance, corrosion resistance, and aesthetics:

Chemical Conversion Coating: Thin chromate-free layer (2–5μm) improving adhesion for subsequent painting, preserving conductivity and providing basic corrosion protection.

Conductive Anodization: Electrochemical process forming a 10–20μm conductive oxide layer (surface resistance ≤1Ω/sq), maintaining electrical continuity for shielding while resisting corrosion (480+ hours salt spray test).

Conductive Powder Coating: Thermoset coating with conductive additives (carbon black/nickel flakes), offering surface resistance ≤5Ω/sq and enhanced scratch resistance (Vickers hardness: 350+ HV).

Product Advantages:

1. Superior EMI/RFI Shielding: Blocks 80–100 dB of electromagnetic interference, ensuring wireless modules meet strict EMC compliance without signal degradation.
2. High Conductivity & Structural Strength: 6061-T6/5052 alloy combines excellent electrical conductivity (for shielding) with tensile strength (240–310 MPa) for rugged environments.
3. Dual Protection: Integrates EMI shielding with IP54/IP65 dust/waterproofing, suitable for both indoor industrial and outdoor telecom applications.
4. Precision Sealing: Conductive foam/beryllium copper gaskets eliminate gaps in seams, preventing EMI leakage and ensuring consistent shielding performance.
5. Customizable Design: Supports CNC-machined cutouts (for antennas, connectors), custom mounting holes, and length adjustments—no mold fees for small-batch orders (MOQ: 30 units).
6. Thermal Efficiency: Aluminum extrusion structure acts as a natural heat sink, dissipating heat from high-power wireless modules (thermal conductivity: 190–205 W/(m·K)).
7. Easy Installation: Multiple mounting options (DIN rail, panel, wall) with pre-drilled holes and compatible hardware, reducing assembly time.
8. Compliance & Reliability: Meets MIL-STD-461, EN 55032, and FCC standards, with RoHS compliance for global market access.

Frequently Asked Questions (FAQ) Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:Frequently Asked Questions (FAQ)

Q: What is the lead time for bulk orders, and do you provide EMC test reports?

A: Bulk orders (100+ units) have a 12–18 day lead time. We provide EMC test reports (per MIL-STD-461/EN 55032) for each batch, ensuring compliance with global regulatory requirements.

Q: How does the enclosure achieve electromagnetic shielding?

A: The aluminum alloy’s high conductivity creates a Faraday cage, while conductive gaskets seal seams—blocking external EMI from entering and internal wireless signals from leaking, ensuring module performance.

Q: What frequency range does the shielding cover?

A: Standard shielding works for 30 MHz–1 GHz (80–100 dB), with custom configurations available for 1–10 GHz (up to 110 dB) to support 5G mmWave and high-frequency wireless modules.

Q: Can the enclosure be customized for specific wireless module sizes?

A: Yes. We offer custom lengths (50 mm–2500 mm), wall thicknesses (2.0–4.0 mm), and CNC-machined cutouts for antennas/connectors—samples are ready in 5–7 days with no mold fees.

Q: Does the surface treatment affect shielding performance?

A: No. All surface treatments (conductive anodization, powder coating) are designed to maintain electrical conductivity (surface resistance ≤5Ω/sq), ensuring shielding effectiveness isn’t compromised.

Q: Can the enclosure withstand harsh industrial or outdoor environments?

A: Absolutely. With IP54/IP65 protection, corrosion-resistant surface treatment, and operating temperature range of -55℃~130℃, it performs reliably in industrial, coastal, and automotive environments.

Q: How do I choose between DIN rail-mount and panel-mount options?

A: DIN rail-mount (35mm standard) is ideal for control cabinets with other rail-mounted components; panel-mount is better for integrated equipment panels—custom brackets are available for unique installations.

Q: Does the enclosure require additional grounding for shielding?

A: The aluminum structure is naturally conductive, but adding a grounding tab (included as an option) enhances shielding by redirecting EMI to the ground, recommended for high-noise environments.

---
