6063 Alloy IP65 Aluminum Extrusion Enclosures for Industrial PLC Control Module
PRODUCT PARAMETERS
Description

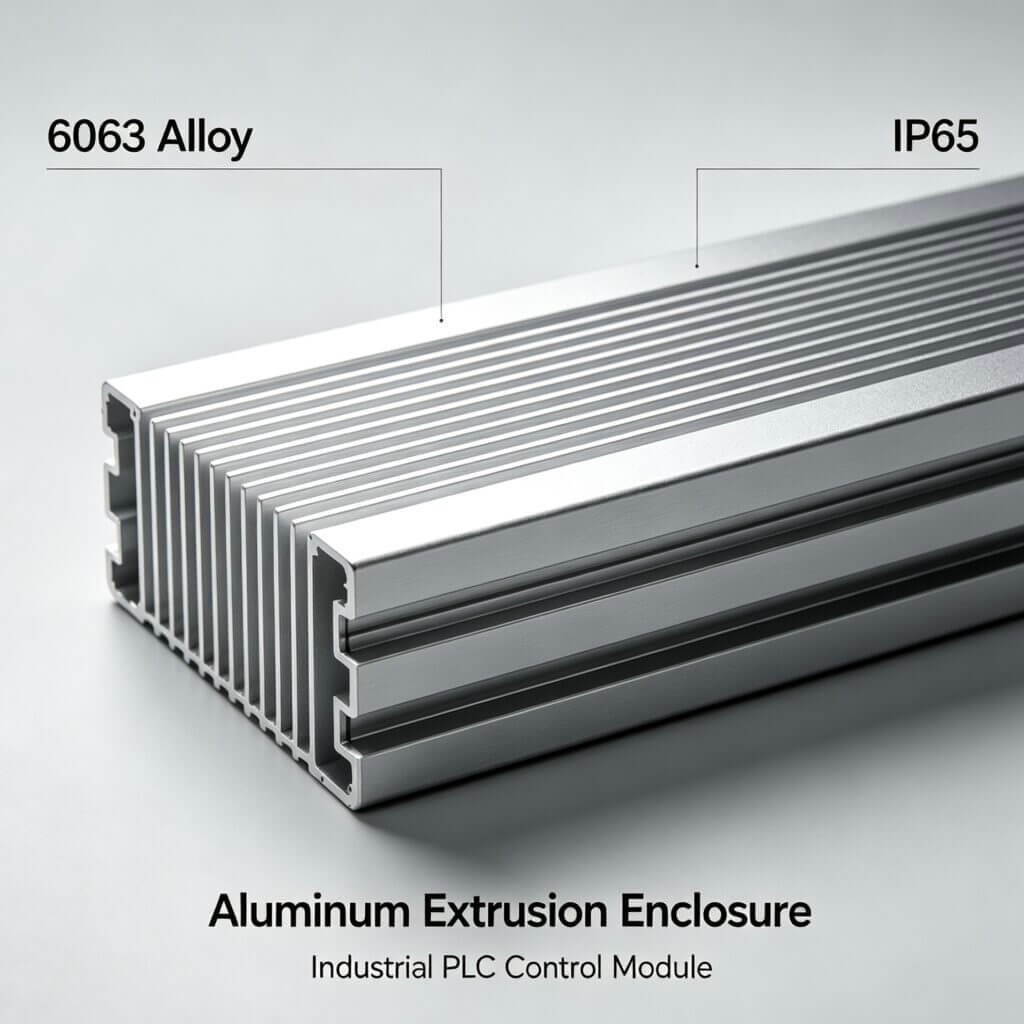

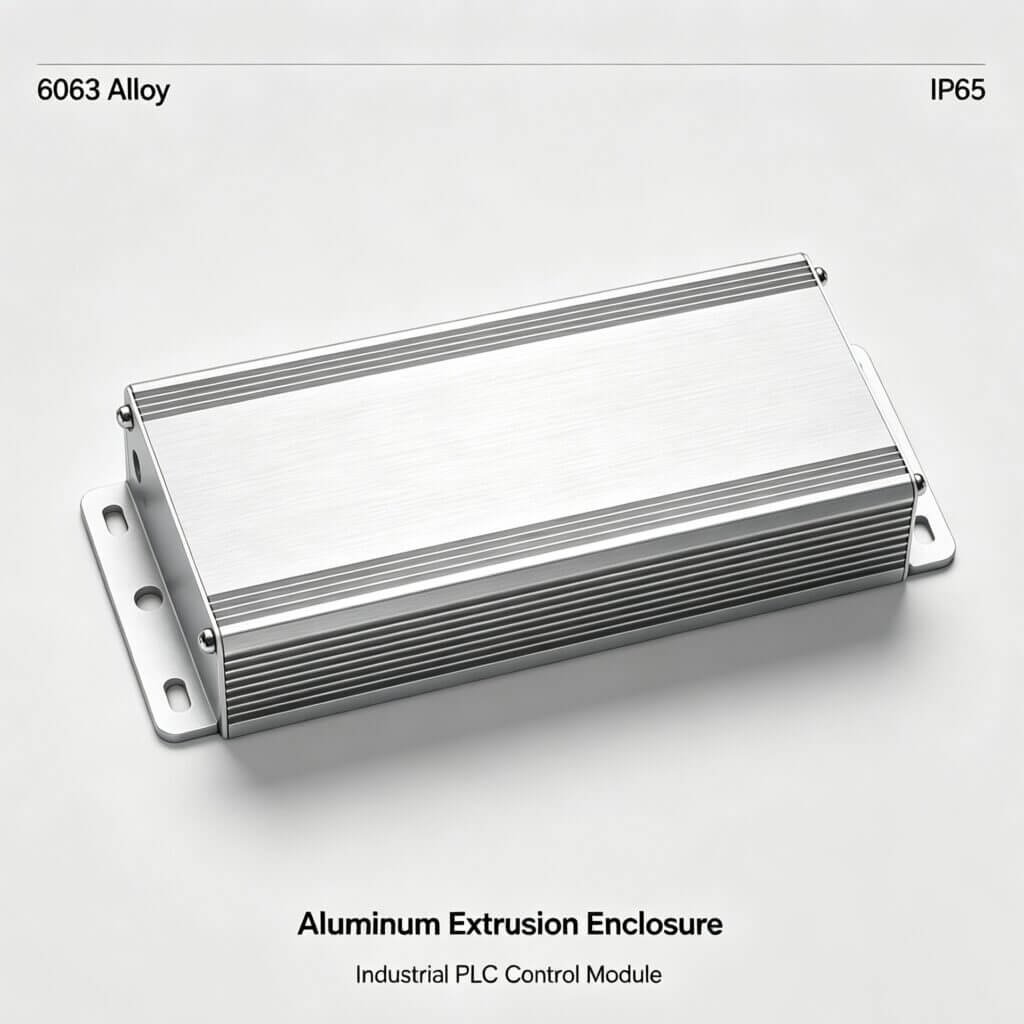

6063 Alloy IP65 Aluminum Extrusion Enclosures for Industrial PLC Control Module
Introduction Of 6063 Alloy IP65 Aluminum Extrusion Enclosures:
Engineered specifically for industrial automation systems, these 6063 alloy IP65 aluminum extrusion enclosures are precision-fabricated to deliver reliable protection and optimal performance for PLC (Programmable Logic Controller) control modules. Crafted from high-grade 6063-T5 aluminum alloy—renowned for its excellent thermal conductivity, structural rigidity, and corrosion resistance—the enclosures feature an IP65-rated sealed design that effectively blocks dust ingress and low-pressure water jets, ensuring stable operation in harsh industrial environments. The integrated extrusion structure enhances heat dissipation, preventing thermal buildup in high-load PLC modules, while compatibility with standard PLC mounting configurations makes them a seamless fit for factory automation, process control, and industrial IoT systems. Compliant with IEC 60529 (IP rating) and ISO 9001 standards, these enclosures are the trusted housing solution for critical industrial control applications.
Specification Table Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
| Parameter | Details |
|---|---|
| Material | 6063-T5 aluminum alloy (thermal conductivity: 201 W/(m·K); tensile strength: 215 MPa) |
| Protection Grade | IP65 (IEC 60529: dust-tight, protection against water jets from any direction) |
| Wall Thickness | 1.5–3.0 mm (optimized for structural stability and heat transfer) |
| Surface Treatment | Black anodization (10–25μm), electrostatic powder coating (RAL 7035/9005), or chemical conversion coating |
| Operating Temperature | -40℃ ~ 120℃ (adapts to extreme industrial temperature fluctuations) |
| Length Range | 100 mm – 2000 mm (custom cuttable to exact PLC module dimensions) |
| Cross-Section Dimensions | 60×80 mm / 80×100 mm / 100×120 mm (standard); custom profiles available |
| Installation Type | DIN rail-mount (35mm standard), panel-mount, wall-mount (with reinforced flanges) |
| Dimensional Tolerance | ±0.05 mm (CNC machining precision); ±0.1 mm (extrusion precision) |
| Certifications | IEC 60529 (IP65), ISO 9001, RoHS, UL 94 V-0 (flame retardancy) |
| Weight | 0.8–3.2 kg (varies by length, cross-section, and wall thickness) |
| EMI Shielding | Optional (conductive anodization + conductive gaskets: 70–90 dB @ 30 MHz–1 GHz) |
Application Scenarios Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
- Factory automation production line PLC control modules
- Chemical industry process control PLC cabinets
- Power distribution system PLC protection enclosures
- Automotive manufacturing assembly line PLC units
- Water treatment plant PLC control systems
- Smart factory IoT-integrated PLC modules
- Mining industry harsh-environment PLC housings
- Food and beverage processing line PLC control boxes
Surface Treatment & Product Advantages Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
Surface Treatment Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
Three industrial-grade options tailored to PLC control module requirements:
- Black Anodization: 10–25μm electrochemical oxide layer offering exceptional corrosion resistance (480+ hours salt spray test) and heat dissipation efficiency—ideal for high-temperature industrial environments.
- Electrostatic Powder Coating: Thermoset coating (RAL 7035 gray/RAL 9005 black) with high impact resistance (IK08 rating) and UV stability, preventing scratches and fading in factory settings.
- Chemical Conversion Coating: Thin chromate-free layer (2–5μm) improving adhesion for subsequent assembly and providing basic corrosion protection for indoor PLC applications.
Product Advantages Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
- 6063 Alloy Superiority: Balances high thermal conductivity (dissipates PLC heat 2x faster than plastic enclosures) and structural rigidity, supporting internal components without deformation.
- IP65 Reliable Protection: Blocks dust, water jets, and industrial debris, ensuring PLC modules operate flawlessly in dusty, humid, or wet industrial environments.
- Perfect PLC Compatibility: Standard DIN rail-mount (35mm) and custom cross-sections fit most mainstream PLC brands (Siemens, Allen-Bradley, Mitsubishi, Omron) without modification.
- Enhanced Heat Dissipation: Extrusion fins + aluminum alloy material reduce internal temperature by 20–30℃, extending PLC component lifespan by 50%+ in high-load scenarios.
- Custom Flexibility: Supports CNC-machined cutouts (for connectors, displays, vents), custom lengths, and mounting brackets—no mold fees for small-batch orders (MOQ: 30 units).
- Industrial Durability: 1.5–3.0mm wall thickness + extrusion molding resists impact (IK08) and vibration, withstanding heavy-duty factory operations.
- Easy Installation & Maintenance: Pre-drilled mounting holes and removable end caps simplify PLC module assembly, wiring, and routine inspection.
- Global Compliance: Meets IEC 60529 (IP65), UL 94 V-0, and RoHS standards, facilitating integration into international industrial projects.
Frequently Asked Questions (FAQ) Of 6063 Alloy IP65 Aluminum Extrusion Enclosures：
Q: Why is 6063-T5 aluminum alloy ideal for PLC control module enclosures?
A: 6063-T5 offers an unbeatable balance of thermal conductivity (critical for dissipating PLC heat), structural strength (supports internal components), and extrusion feasibility (enables complex finned designs)—all essential for industrial control applications.
Q: What does IP65 protection specifically mean for PLC enclosures?
A: IP65-rated enclosures are dust-tight (no dust ingress) and protected against low-pressure water jets (from any direction, up to 12.5 liters/min for 3 minutes), making them suitable for dusty factories, washdown areas, and outdoor industrial installations.
Q: Can the enclosure be customized to fit non-standard PLC module sizes?
A: Yes. We offer full customization: length (100mm–2000mm), cross-section dimensions (e.g., 70×90mm), and CNC-machined cutouts for specific connectors—samples are ready in 7 days with no mold fees for orders over 50 units.
Q: Does the enclosure support EMI shielding for sensitive PLC electronics?
A: Yes. Opt for the conductive anodization upgrade + Ni-Cu-Ni plated conductive gaskets, achieving 70–90 dB shielding effectiveness (30 MHz–1 GHz) to block electromagnetic interference from industrial motors or power lines.
Q: How durable is the surface treatment in harsh industrial environments?
A: Black anodization withstands 480+ hours of salt spray (ASTM B117) and resists chemical exposure; powder coating offers IK08 impact resistance (resists 5J impacts) and UV stability for 10+ years in outdoor/indoor settings.
Q: What mounting options are available for different industrial setups?
A: Standard options include 35mm DIN rail-mount (most common for PLCs), panel-mount (for control cabinets), and wall-mount (with reinforced flanges). Custom mounting brackets (e.g., pole-mount) can be designed for unique installations.
Q: Can the enclosure operate in extreme temperature environments (e.g., cold warehouses or hot factories)?
A: Yes. It maintains structural integrity and performance from -40℃ (cold storage/arctic industrial sites) to 120℃ (high-temperature manufacturing plants), exceeding typical PLC operating temperature requirements (-20℃~60℃).
Q: What is the lead time for bulk orders, and do you provide quality test reports?
A: Bulk orders (100+ units) have a 12–18 day lead time. We provide test reports for IP65 protection, thermal conductivity, and material certification (6063-T5) upon request, ensuring compliance with industrial standards.
