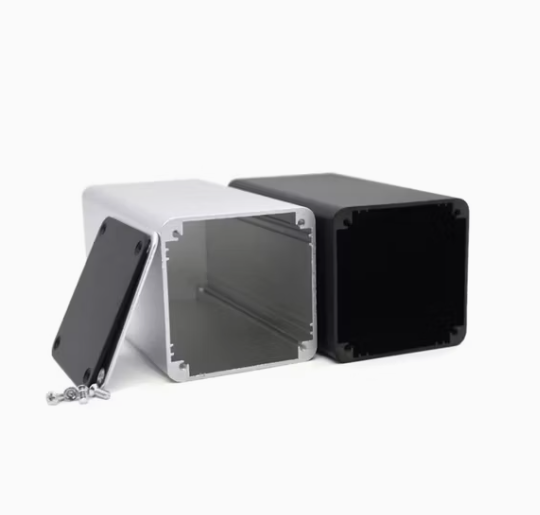

Black Anodized Heat Dissipation Aluminum Extrusion Enclosures for LED Driver Housing

Introduction Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

Crafted from high-grade 6063-T5 aluminum alloy, these black anodized extrusion enclosures are engineered to deliver exceptional heat dissipation and reliable protection for LED driver modules. The integrated extrusion structure acts as a natural heat sink, effectively mitigating thermal buildup that shortens electronic component lifespan, while the premium black anodized finish enhances corrosion resistance and aesthetic appeal. Designed to meet IP65/IP67 waterproof and dustproof standards, they ensure stable operation of LED drivers in both indoor and outdoor environments, making them the ideal housing solution for high-power lighting systems.

Specification Table Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

Parameter	Details
Material	6063-T5/6061-T6 aluminum alloy (thermal conductivity: 201–218 W/(m·K))
Wall Thickness	1.5–3.0 mm (optimal balance of strength and heat transfer)
Protection Grade	IP65 (standard) / IP67 (customizable with sealed gaskets)
Surface Treatment	Black anodization (Type II: 10–25μm; Type III hard coat: 25–100μm)
Operating Temperature	-40℃ ~ 120℃
Length Range	50 mm – 3000 mm (custom cuttable to exact dimensions)
Installation Type	Wall-mount, DIN rail-mount, stud-mount (8-32 threaded stud compatible)
Dimensional Tolerance	±0.05 mm (CNC machining precision)
EMI Shielding	Natural metal shielding (meets EMC test requirements)
Certifications	ISO 9001, IATF 16949, ROHS compliant
Weight	0.2–2.5 kg (varies by size and wall thickness)

Application Scenarios Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

• Outdoor LED street lights and landscape lighting systems
• Industrial high-power LED fixtures (factory, warehouse lighting)
• Commercial lighting (shopping malls, office buildings, exhibition halls)
• Architectural lighting and decorative LED installations
• Smart lighting systems with IoT-integrated LED drivers
• Tunnel and underpass LED lighting projects
• Stage and entertainment venue lighting equipment
• Solar-powered LED lighting systems (solar inverter-driver integration)

Surface Treatment & Product Advantages Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

Surface Treatment: Black Anodization Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

The enclosures undergo a precision electrochemical anodizing process compliant with MIL-A-8625 standards, involving degreasing, anodizing, black dye infusion, and sealing. The resulting oxide layer (10–100μm) penetrates the aluminum surface, creating a bond that resists chipping, peeling, and fading—unlike traditional paint coatings. Type II anodization (10–25μm) offers excellent corrosion resistance (336+ hours salt spray test), while Type III hard coat (25–100μm) delivers superior wear resistance (Taber abrasion test: 5–15 mg loss) for harsh environments.

Product Advantages Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

1. Superior Heat Dissipation: 6063 aluminum alloy’s high thermal conductivity (20x better than plastic) plus extrusion fins accelerates heat transfer, extending LED driver lifespan by 50%+.
2. Reliable Protection: IP65/IP67 rating prevents dust ingress and water jets/submersion (up to 1m for 30 mins), ideal for outdoor and high-humidity settings.
3. Structural Durability: Lightweight (1/3 the density of steel) yet high tensile strength (200MPa+), withstanding impact and vibration in industrial environments.
4. Long-Lasting Finish: Black anodized layer resists scratches (Vickers hardness: 200–600 HV) and UV radiation, maintaining appearance over years of use.
5. Custom Flexibility: CNC machining supports custom cutouts, mounting holes, and lengths; no mold fees for small-batch orders, with samples available in 7 days.
6. EMI Shielding: Metal construction blocks electromagnetic interference, ensuring LED drivers pass EMC compliance tests without additional shielding.
7. Easy Installation: Multiple mounting options (wall, rail, stud) with pre-drilled holes and compatible hardware, reducing installation time.
8. Eco-Friendly: RoHS-compliant materials and energy-efficient production process, aligning with green manufacturing standards.

Frequently Asked Questions (FAQ) Of Black Anodized Heat Dissipation Aluminum Extrusion Enclosures:

Q: What is the lead time for bulk orders?

A: Prototypes are ready in 7 days; bulk orders (1000+ units) have a 15–20 day lead time, with global shipping and ISO-certified quality control.

Q: Why choose 6063 aluminum alloy for LED driver enclosures?

A: 6063-T5 alloy offers an optimal balance of thermal conductivity (201 W/(m·K)), structural strength, and extrusion feasibility—critical for dissipating LED driver heat while maintaining lightweight design.

Q: Can these enclosures withstand coastal high-salt environments?

A: Yes. The black anodized layer (≥15μm) plus optional powder coating achieves 1000+ hours salt spray resistance, preventing corrosion in coastal or high-humidity areas.

Q: How scratch-resistant is the black anodized finish?

A: Type III hard coat anodization reaches 400–600 HV hardness, resisting scratches from daily handling and minor impacts (Taber abrasion loss ≤15mg).

Q: Are custom sizes and cutouts available for unique LED driver designs?

A: Absolutely. We support custom lengths (50mm–3000mm) and CNC-machined cutouts for wiring, connectors, or vents—no mold fees for orders over 50 units, with 24-hour design consultation.

Q: How does the enclosure improve LED driver lifespan?

A: The integrated heat dissipation structure reduces internal temperature by 20–30℃, doubling the lifespan of electrolytic capacitors (a key failure point in LED drivers).

Q: What mounting options are compatible with these enclosures?

A: Standard options include wall-mount (flange tabs), DIN rail-mount, and 8-32 threaded stud-mount—all designed for secure installation in lighting fixtures or control panels.

Q: Can the enclosure operate in extreme temperature conditions?

A: Yes. It maintains structural integrity and performance from -40℃ (cold climates) to 120℃ (high-temperature industrial settings), exceeding typical LED driver operating requirements.

---
