How to Choose the Right Surface Finishing for Aluminum Profiles？

Aluminum extrusion profiles are the backbone of modern manufacturing, construction, and engineering, valued for their lightweight strength, corrosion resistance, and design flexibility. However, to maximize the performance, durability, and aesthetic appeal of aluminum profiles, selecting the right surface treatment is critical. This comprehensive guide explores the most effective surface finishing methods for aluminum extrusion, their technical parameters, benefits, and ideal applications, helping you make informed decisions for your aluminum profile projects.

---

Understanding Aluminum Extrusion Surface Finishing Basics

Aluminum profiles naturally form a thin oxide layer (Al₂O₃) when exposed to air, providing basic corrosion protection. Surface finishing enhances this natural protection, improves wear resistance, adds color, and creates specific textures for functional or decorative purposes. The choice of surface treatment for your aluminum extrusion depends on several factors:

• Application requirements: Corrosion resistance, wear resistance, electrical insulation, thermal conductivity
• Environmental conditions: Exposure to saltwater, UV radiation, chemicals, temperature extremes
• Aesthetic preferences: Color, texture, reflectivity, gloss level
• Budget constraints: Initial cost, maintenance requirements, lifespan
• Regulatory compliance: RoHS, REACH, food safety, or industry-specific standards

---

Primary Surface Treatment Methods for Aluminum Profiles

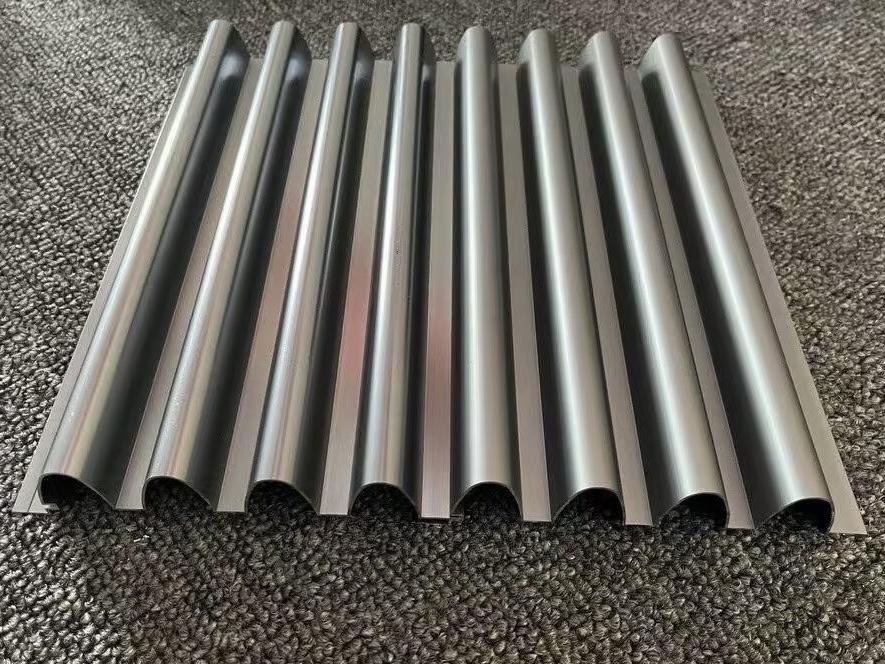

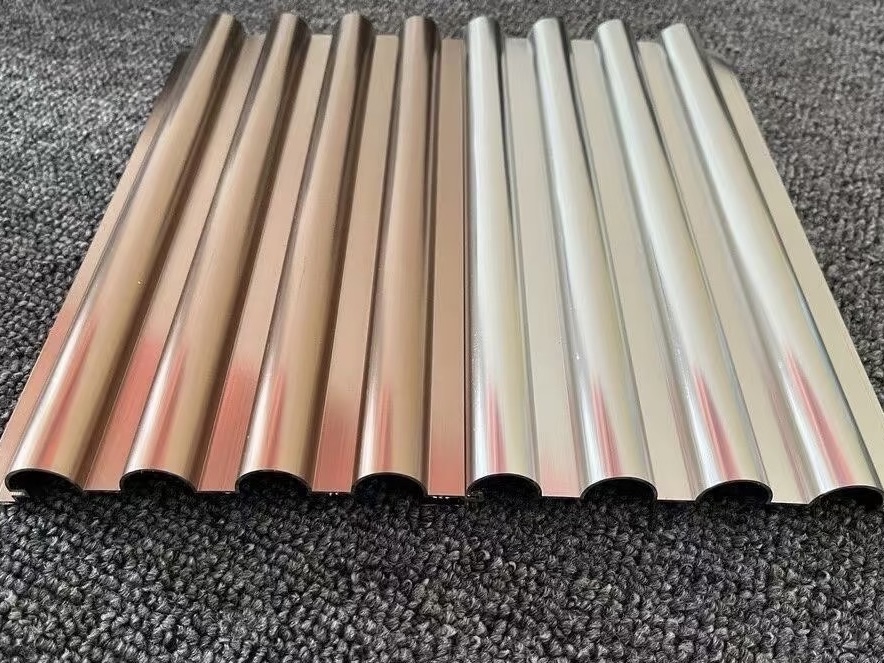

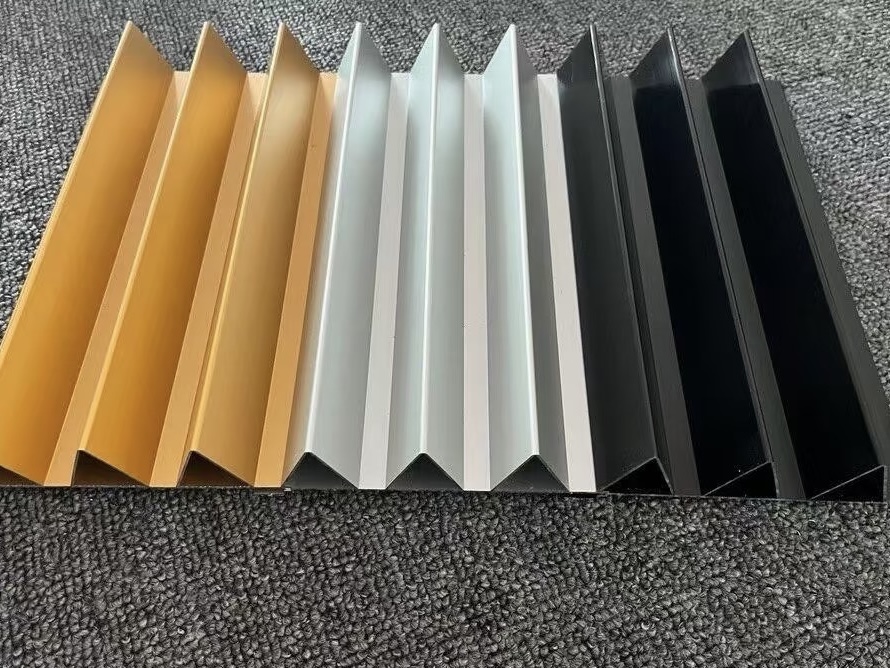

1. Anodizing: The Gold Standard for Aluminum Protection

Anodizing is the most widely used electrochemical surface treatment for aluminum extrusion, creating a controlled, porous oxide layer that integrates with the base metal. This process transforms the aluminum profile into the anode in an electrolytic solution, where an electric current forms a durable, corrosion-resistant oxide film.

Types of Anodizing for Aluminum Profiles

Anodizing Type	Process Parameters	Film Thickness	Key Properties	Ideal Applications
Type I (Chromic Acid)	3-10% chromic acid, 25-30°C, 10-20V, 30-60 min	2-10 μm	Excellent corrosion resistance, thin layer, good for tight tolerances	Aerospace components, precision parts, military applications
Type II (Sulfuric Acid)	15-20% sulfuric acid, 18-22°C, 12-18V, 20-60 min	5-25 μm	Versatile, cost-effective, dyeable, good adhesion	Architectural aluminum profiles, consumer electronics, furniture
Type III (Hard Anodizing)	15-20% sulfuric acid, 0-10°C, 20-40V, 60-120 min	25-100 μm	Rockwell C 60-70 hardness, extreme wear resistance	Industrial machinery, automotive components, hydraulic systems
Trivalent Anodizing	Chromium-free electrolytes, 20-30°C, 10-20V	5-20 μm	RoHS-compliant, eco-friendly, comparable to Type II	Medical devices, food processing equipment, green building projects

Benefits of Anodizing Aluminum Profiles

• Superior adhesion: Oxide layer bonds chemically with aluminum, preventing peeling or chipping
• Enhanced corrosion resistance: Protects against saltwater, industrial chemicals, and UV radiation
• Dyeability: Type II anodized aluminum profiles can be dyed in over 100 colors, from natural silver to deep black
• Electrical insulation: Hard anodizing provides excellent dielectric properties (10¹⁰-10¹² Ω·cm)
• Sustainability: No VOC emissions, recyclable, and the oxide layer is non-toxic

Applications of Anodized Aluminum Profiles

• Architectural: Window frames, curtain walls, handrails, and decorative panels requiring long-term outdoor durability
• Electronics: Heat sinks, LED lighting fixtures, and electronic enclosures needing thermal conductivity and corrosion resistance
• Automotive: Exterior trim, wheel rims, and engine components requiring wear resistance
• Marine: Boat fittings, dock hardware, and offshore equipment needing saltwater corrosion protection

2. Powder Coating: Durable Color and Protection for Aluminum Extrusion

Powder coating is an electrostatic process that applies dry, free-flowing powder to aluminum profiles, followed by heat curing to form a hard, durable finish. This method offers exceptional color versatility and impact resistance for aluminum extrusion applications.

Powder Coating Process for Aluminum Profiles

1. Pre-treatment: Aluminum profiles undergo cleaning, etching, and conversion coating to ensure adhesion
2. Electrostatic application: Powder particles (10-90 μm) are charged and attracted to grounded aluminum profiles
3. Curing: Profiles are heated to 160-200°C for 10-20 minutes, melting and cross-linking the powder
4. Cooling and inspection: Finished aluminum profiles are cooled and checked for film thickness and quality

Types of Powder Coatings for Aluminum Extrusion

Coating Type	Chemistry	Film Thickness	Key Properties	Ideal Applications
Thermoset Polyester	Cross-linking polyester resins	50-100 μm	Good weatherability, color retention, cost-effective	Architectural aluminum profiles, furniture, general industrial use
Super Durable Polyester	High-performance polyester with UV stabilizers	50-120 μm	Excellent weatherability (10+ years), fade resistance	Outdoor aluminum extrusion, coastal applications, solar panel frames
PVDF (Kynar 500)	Polyvinylidene fluoride resins	50-150 μm	Superior weatherability (20+ years), chemical resistance	High-end architecture, coastal buildings, aerospace components
Epoxy	Epoxy resins	60-150 μm	Exceptional corrosion and chemical resistance	Industrial equipment, chemical processing, interior applications
Hybrid (Polyester-Epoxy)	Polyester and epoxy blend	50-120 μm	Balanced weatherability and corrosion resistance	General purpose, medium-duty outdoor use

Benefits of Powder Coating Aluminum Profiles

• Vast color options: Solid, metallic, matte, glossy, and textured finishes available
• Superior impact resistance: 2-4H pencil hardness, flexible coating absorbs shocks without cracking
• Eco-friendly: Zero VOC emissions, overspray can be recycled, reducing waste by 95%
• Cost-effective: One-step application, minimal maintenance, long lifespan
• Thick, uniform coverage: Even coating on complex aluminum extrusion shapes

Applications of Powder Coated Aluminum Profiles

• Construction: Window and door frames, curtain walls, railing systems, and architectural cladding
• Transportation: Bus and train interiors, trailer components, and electric vehicle charging stations
• Furniture: Outdoor patio sets, office partitions, and retail display fixtures
• Renewable energy: Solar panel frames, wind turbine components, and battery enclosures

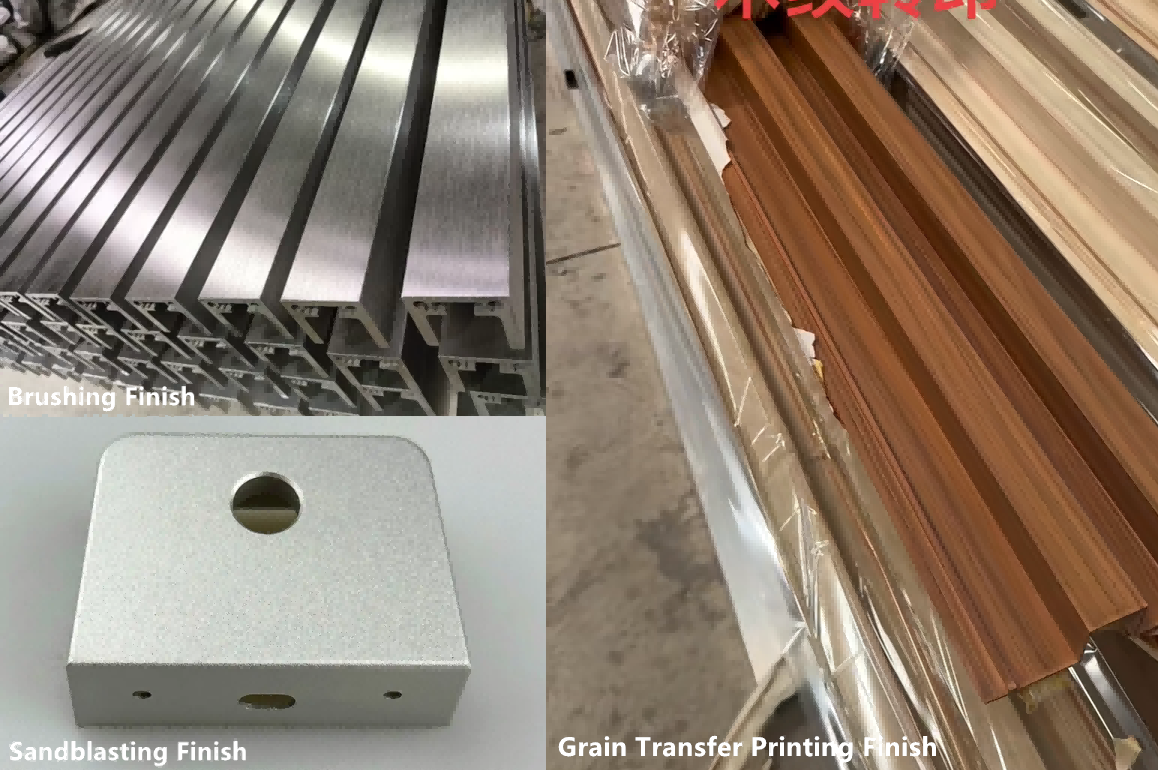

3. Mechanical Surface Finishes: Enhancing Texture and Appearance

Mechanical finishing processes modify the surface texture of aluminum profiles without adding a coating, creating specific aesthetic or functional properties. These methods are often used as pre-treatments for anodizing or powder coating, or as standalone finishes for aluminum extrusion.

Common Mechanical Finishing Techniques for Aluminum Profiles

Technique	Process Details	Surface Roughness (Ra)	Key Benefits	Applications
Brushing	Abrasive belts create linear grain patterns (180-320 grit)	0.4-1.6 μm	Clean, modern appearance, hides minor scratches	Architectural trim, appliance panels, electronic enclosures
Polishing	Progressive abrasive compounds for mirror finish	<0.1 μm	High reflectivity, decorative appeal	Automotive trim, lighting fixtures, decorative aluminum profiles
Sandblasting	Abrasive media (glass beads, aluminum oxide) at 50-100 psi	1.6-6.3 μm	Uniform matte texture, improves adhesion for coatings	Industrial components, marine hardware, anti-slip surfaces
Tumbling/Barrel Finishing	Ceramic or plastic media for mass finishing	0.8-3.2 μm	Deburring, edge rounding, uniform surface	Small aluminum extrusion parts, hardware, fasteners
Bead Blasting	Fine glass beads for smooth, satin finish	0.8-1.6 μm	Preserves dimensional accuracy, creates non-reflective surface	Medical devices, food processing equipment, aerospace components

Benefits of Mechanical Finishing for Aluminum Profiles

• Improved adhesion: Rough surface texture enhances bonding with coatings and adhesives
• Custom aesthetics: Creates unique textures not achievable with other methods
• Cost-effective: Simple processes with minimal material waste
• Functional properties: Can create anti-slip surfaces or improve heat dissipation

Applications of Mechanically Finished Aluminum Profiles

• Consumer electronics: Smartphone cases, laptop chassis, and tablet housings
• Medical equipment: Surgical instruments, diagnostic devices, and hospital furniture
• Food processing: Equipment frames, conveyor systems, and packaging machinery
• Automotive: Interior trim, dashboard components, and wheel covers

4. Chemical Surface Treatments: Passivation and Conversion Coatings

Chemical treatments enhance the natural oxide layer of aluminum profiles or create a thin protective film, improving corrosion resistance and adhesion for subsequent coatings. These processes are critical for aluminum extrusion applications in harsh environments.

Key Chemical Surface Treatments for Aluminum Profiles

Treatment Type	Process Chemistry	Film Thickness	Corrosion Protection	Applications
Chromate Conversion	Hexavalent or trivalent chromium solutions	0.05-0.5 μm	Excellent (CASS test 9+), self-healing properties	Aerospace, military, and marine aluminum profiles
Phosphate Conversion	Zinc or iron phosphate solutions	0.1-1.0 μm	Good, improves paint adhesion	Automotive components, industrial machinery
Titanium-Zirconium Conversion	Chrome-free, RoHS-compliant solutions	0.02-0.2 μm	Very good, eco-friendly alternative to chromate	Green building, medical, and food industries
Passivation	Nitric or citric acid solutions	0.01-0.1 μm	Enhances natural oxide layer, reduces reactivity	Chemical processing, pharmaceutical equipment

Benefits of Chemical Surface Treatments for Aluminum Profiles

• Enhanced corrosion resistance: Protects against pitting, crevice, and galvanic corrosion
• Improved adhesion: Creates a porous surface for better coating bonding
• Eco-friendly options: Chrome-free processes meet modern environmental standards
• Cost-effective: Thin films require minimal material and processing time

Applications of Chemically Treated Aluminum Profiles

• Marine industry: Boat hulls, deck fittings, and offshore platform components
• Chemical processing: Piping systems, storage tanks, and reactor vessels
• Medical devices: Surgical instruments, diagnostic equipment, and implantable devices
• Electronics: Printed circuit boards, heat sinks, and semiconductor manufacturing equipment

5. Advanced Surface Treatments for High-Performance Aluminum Profiles

For demanding applications requiring exceptional performance, advanced surface treatments offer solutions beyond traditional methods, pushing the boundaries of what aluminum extrusion can achieve.

Cutting-Edge Surface Treatment Technologies for Aluminum Profiles

Technology	Process Overview	Key Performance Metrics	Revolutionary Applications
Plasma Electrolytic Oxidation (PEO)	Electrochemical process creating ceramic-like oxide layer (50-200 μm)	Hardness 1000-2000 HV, corrosion resistance 1000+ hours salt spray	Aerospace components, high-performance automotive parts, medical implants
Nano-Ceramic Coating	Sol-gel process applying 10-100 nm ceramic layer	Thermal conductivity 200-250 W/m·K, corrosion resistance 2000+ hours salt spray	LED lighting, heat sinks, electronic packaging
Organic Acid Anodizing	Replaces sulfuric acid with eco-friendly organic acids	20-50% energy reduction, improved color consistency	Green building, sustainable manufacturing, consumer electronics
Self-Healing Coatings	Microcapsules with healing agents activated by damage	90% recovery of corrosion protection after scratch	Automotive exteriors, marine equipment, architectural cladding
UV-Cured Coatings	Solvent-free polymers cured with ultraviolet light	90% VOC reduction, 30% faster processing	High-volume production, food packaging, medical devices

Benefits of Advanced Surface Treatments for Aluminum Profiles

• Unmatched performance: Superior hardness, corrosion resistance, and thermal properties
• Sustainability: Reduced energy consumption, lower environmental impact
• Design flexibility: Enables new applications for aluminum extrusion in high-stress environments
• Longevity: Extended service life reduces replacement frequency and lifecycle costs

Applications of Advanced Surface Treated Aluminum Profiles

• Aerospace: Aircraft fuselage components, engine parts, and interior structures
• Renewable energy: Wind turbine blades, solar panel frames, and battery storage systems
• Medical technology: Orthopedic implants, surgical tools, and diagnostic equipment
• Automotive: Electric vehicle battery housings, motor components, and lightweight structural parts

---

Comparative Analysis: Choosing the Right Surface Treatment for Your Aluminum Profile Project

To help you select the optimal surface treatment for your aluminum extrusion application, here’s a comprehensive comparison of the most popular methods:

Performance Metric	Anodizing (Type II)	Powder Coating (PVDF)	Mechanical Brushing	Chemical Passivation	PEO Coating
Corrosion Resistance	Excellent (500-1000h salt spray)	Superior (1000-2000h salt spray)	Moderate (100-300h salt spray)	Good (300-500h salt spray)	Exceptional (2000+h salt spray)
Wear Resistance	Good (Type II), Excellent (Type III)	Moderate (2-4H pencil)	Low to Moderate	Low	Exceptional (1000+ HV)
Color Options	Limited (dyeable, 50+ colors)	Unlimited (solid, metallic, textured)	Limited (natural aluminum tones)	None (transparent)	Limited (natural gray/black)
Film Thickness	5-25 μm	50-150 μm	0 μm (texture only)	0.01-0.5 μm	50-200 μm
Environmental Impact	Low (no VOCs, recyclable)	Very Low (no VOCs, overspray recycled)	Low (minimal waste)	Medium (chemical disposal)	Medium (energy-intensive)
Cost (per m²)	$8-15	$10-20	$3-8	$2-5	$25-50
Lifespan (Outdoor)	15-20 years	20-30 years	5-10 years	10-15 years	30+ years
Best For	Architectural, electronics, marine	High-end architecture, coastal areas	Decorative, interior applications	Pre-treatment, chemical environments	Aerospace, high-performance industrial

---

Step-by-Step Guide to Selecting Surface Treatment for Aluminum Extrusion

1. Define Performance Requirements: Identify critical factors like corrosion resistance, wear resistance, thermal conductivity, and electrical insulation for your aluminum profile application.
2. Assess Environmental Conditions: Consider exposure to saltwater, UV radiation, chemicals, temperature fluctuations, and humidity levels.
3. Determine Aesthetic Needs: Choose color, texture, gloss level, and reflectivity requirements for your aluminum extrusion project.
4. Evaluate Budget Constraints: Balance initial treatment costs with long-term maintenance expenses and expected lifespan.
5. Check Regulatory Compliance: Ensure compliance with industry standards (RoHS, REACH, AAMA, etc.) and local building codes.
6. Consult with Aluminum Extrusion Experts: Partner with experienced manufacturers like Vanway-Tech to leverage their expertise in selecting the optimal surface treatment for your specific application.

---

Conclusion: Elevating Aluminum Profile Performance with the Right Surface Finish

Aluminum extrusion surface finishing is a critical step in maximizing the value, durability, and functionality of aluminum profiles across industries. From anodizing’s natural protection to powder coating’s vibrant colors, mechanical finishing’s texture, chemical treatment’s corrosion resistance, and advanced technologies like PEO’s ceramic-like performance, each method offers unique benefits for specific applications.

By understanding the technical parameters, performance characteristics, and ideal use cases of each surface treatment, you can make informed decisions that enhance your aluminum profile projects’ performance, aesthetics, and lifespan. For specialized applications or complex requirements, collaborating with a trusted aluminum extrusion partner ensures you get the perfect surface finish tailored to your needs, whether for architectural, automotive, electronic, or industrial applications.
