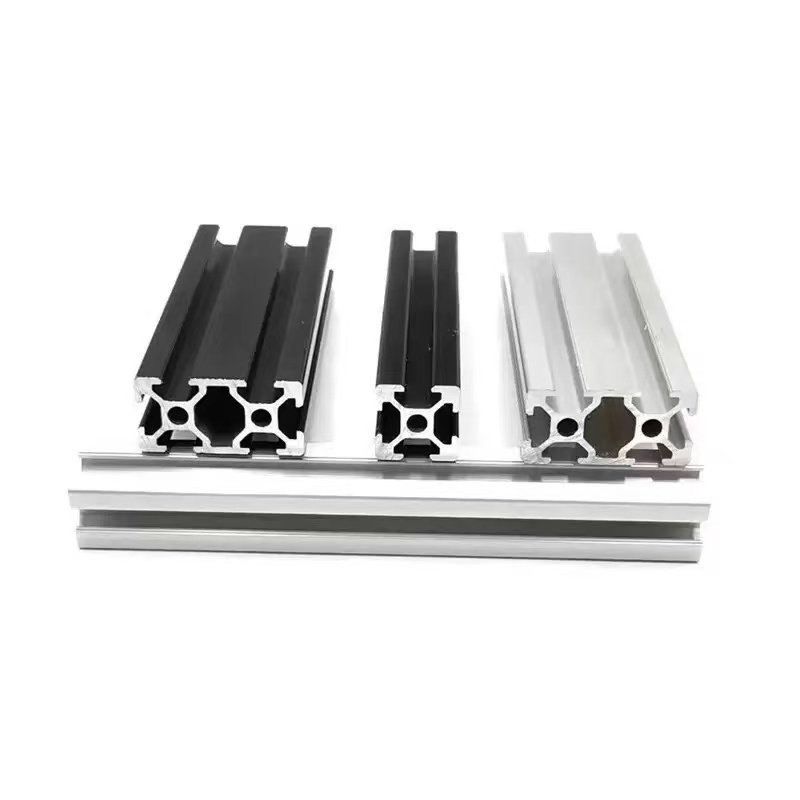

2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black for RV Camper Interior Framing

Product Introduction Of 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

2525 T-Slot Structural Aluminum Extrusion features a 25mm×25mm square profile, standard 1000mm length, 2.0mm thick wall, crafted from premium 6061-T6 aircraft-grade aluminum alloy with premium matte black anodized finish. Designed specifically for RV camper interior framing, this lightweight yet rigid modular T-slot profile delivers outstanding strength, corrosion resistance and low weight. It adopts four-sided open T-slot design, requires no welding, allows quick assembly, disassembly and flexible layout adjustment. The matte black surface is scratch-resistant, moisture-proof and aesthetically elegant, perfectly matching RV interior decoration style and adapting to long-term caravan travel humid and bumpy usage environments.

Product Specification Table 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

Specification Item	Parameter Details
Product Model	2525 T-Slot Structural Aluminum Extrusion
Cross Section Size	25mm × 25mm
Standard Length	1000mm
Aluminum Alloy Grade	6061-T6 High Strength Temper
Wall Thickness	2.0mm Heavy Duty
T-Slot Standard Width	6mm (Compatible M6 Hardware)
Weight Per Meter	1.15kg/m
Surface Treatment	Matte Black Anodized
Structural Design	4-Side Open T-Slot Modular Frame
Straightness Tolerance	≤0.25mm per meter
Edge Processing	Full Deburring & Chamfering
Custom Service	Cutting, Drilling, Tapping, Angle Cutting Available
Main Application	RV Camper Interior Custom Framing

Application Scenarios Of 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

1. RV camper interior wall partition and ceiling framing
2. Camper van custom cabinet, shelf and storage unit frame
3. RV bed frame, bunk support and seating base structure
4. Travel trailer interior decoration and lightweight structural framing
5. Mini 3D printer and small DIY robotics chassis frame
6. Laboratory small instrument bracket and test fixture frame
7. Tiny home interior modular partition and support frame
8. Small automation equipment shell and miniature machine base frame

Product Processing & Surface Treatment Of 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

Processing Methods

1. Precision fixed-length cutting at 1000mm with high dimensional accuracy
2. Full edge deburring and round chamfering to eliminate sharp edges for safe RV interior installation
3. Custom drilling, tapping and milling for RV cabinet and bracket mounting holes
4. 45° / 90° angle cutting for corner splicing of camper interior frames
5. T-slot internal cleaning to ensure smooth sliding of standard connection accessories

Surface Treatment Methods

1. Matte Black Anodized: Premium frosted black finish, scratch-proof, fingerprint-resistant, high-end RV interior aesthetic
2. Clear Silver Anodized: Natural metallic luster, oxidation resistance for general indoor framing
3. Sandblasted Anodized: Uniform matte texture, enhanced anti-scuff performance for frequent RV use
4. Electrophoretic Coating: Superior moisture and corrosion resistance for long-distance caravan travel

Product Advantages Of 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

1. Premium 6061-T6 aluminum alloy, higher strength and toughness than ordinary 6063-T5, not easy to deform during RV bumpy driving
2. 2.0mm reinforced wall thickness, stable structural support for camper cabinet, bed and partition framing
3. Matte black anodized surface, anti-scratch, moisture-proof and anti-fingerprint, perfect for RV interior decoration
4. Ultra-lightweight design, effectively reduce overall RV weight, save fuel consumption for travel
5. Standard 6mm T-slot design, fully compatible with 25 series M6 bolts, nuts and angle connection accessories
6. Modular assembly structure, no welding needed, easy to modify, expand and refit RV interior layout
7. High-precision extrusion forming, straight profile without bending, ensuring neat and firm RV frame assembly
8. Excellent anti-corrosion and moisture resistance, adapt to humid, cold and hot complex outdoor travel environments

FAQs Of 2525 T-Slot Structural Aluminum Extrusion 1000mm 6061-T6 2.0mm Wall Matte Black:

Q1: What is the difference between 6061-T6 and regular 6063-T5 aluminum?

A: 6061-T6 has higher tensile strength, better shock resistance and anti-deformation performance, more suitable for RV camper use that needs to withstand bumpy road conditions.

Q2: Is this 2525 profile ideal for DIY RV camper interior framing?

A: Yes. The 2525 compact size, 2.0mm thick wall and matte black appearance are specially designed for camper van interior modification, lightweight and sturdy.

Q3: Can I cut the 1000mm profile into custom shorter lengths for my RV layout?

A: Absolutely. The aluminum profile can be easily cut with an aluminum saw, and we provide custom cutting, deburring and chamfering services as required.

Q4: What size hardware fits this 2525 T-slot extrusion?

A: It matches standard M6 T-bolts, slot nuts, angle brackets and end caps for all 25 series aluminum extrusion accessories.

Q5: Will the matte black surface fade or scratch easily in RV daily use?

A: No. Hard anodized matte black finish features strong scratch resistance and color fastness, no fading or abrasion under normal RV interior use.

Q6: Is this profile moisture-proof for use in camper van bathroom and kitchen areas?

A: Yes. The anodized layer provides great moisture and corrosion resistance, perfect for humid RV kitchen and bathroom interior framing.

Q7: Can this extrusion be used to build camper bed frames and storage shelves?

A: Definitely. It has stable load-bearing capacity, lightweight and firm, very suitable for RV bed support, storage racks and cabinet framing.

Q8: Are the profile edges sharp when installing inside the RV?

A: All profiles are fully deburred and chamfered, with smooth rounded edges, safe for indoor installation and daily contact in RV living space.

---
