Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion for Solar Panel Angle Adjustment Frames
PRODUCT PARAMETERS
Description

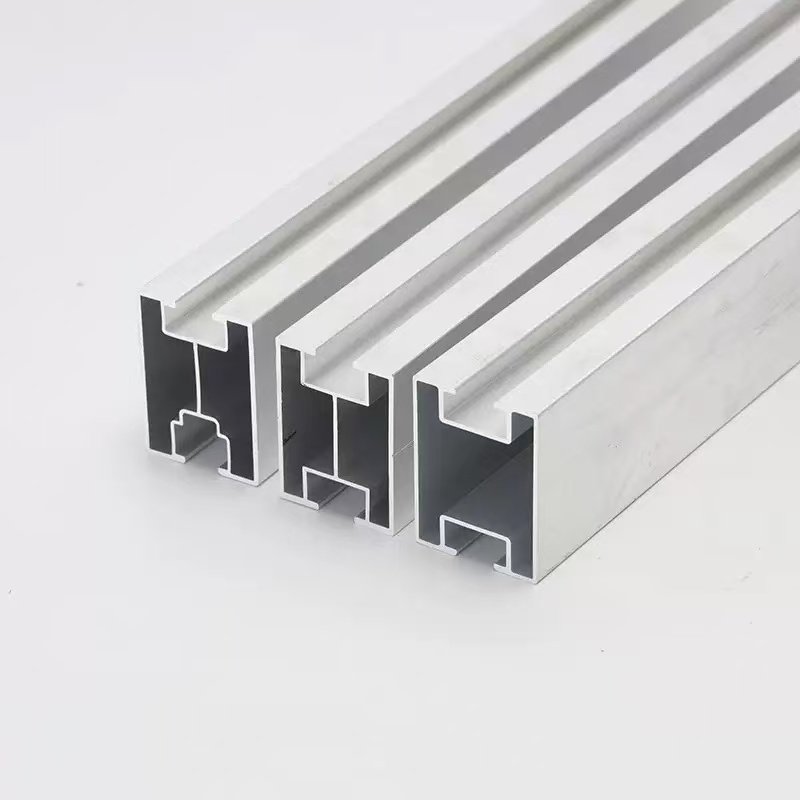

Product Overview Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
Vanway-Tech modular assembled 6063 T5 anodized T-slot aluminum extrusion is a specialized solution engineered for solar panel angle adjustment frames, designed to optimize sunlight absorption and maximize energy output for solar power systems. Crafted from premium 6063-T5 aluminum alloy with industrial-grade anodization, this T-slot profile features a modular design that enables quick assembly, precise angle fine-tuning, and long-term durability in outdoor environments. Suitable for North American and South American solar projects – from residential rooftops to large-scale ground solar farms – it combines lightweight portability, exceptional corrosion resistance, and robust load-bearing capacity, making it the preferred choice for solar panel angle adjustment structures that require reliability and adaptability.
Technical Specifications Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
| Parameter | Details |
|---|---|
| Brand | Vanway-Tech |
| Product Model | Modular 6063 T5 Anodized T-slot Aluminum Extrusion |
| Material | 6063-T5 Aluminum Alloy (ASTM B221 compliant) |
| Temper | T5 (heat-treated, naturally aged) |
| Cross-Section Dimension | 30×30mm, 40×40mm, 45×45mm (standard); custom available |
| Slot Size | 8mm (standard); 6mm/10mm (optional) |
| Slot Width | 8.2mm (for 8mm slot) |
| Wall Thickness | 2.0mm (standard); 2.5mm (heavy-duty) |
| Standard Length | 6m; custom cut-to-length available |
| Angle Adjustment Range | 0°–90° (continuous fine-tuning) |
| Maximum Load Capacity | 150kg per linear meter (uniformly distributed) |
| Dimensional Tolerance | ±0.01mm (length); ±0.1° (angular) |
| Surface Treatment | Anodized (silver/black, 15–20μm thickness) |
| Corrosion Resistance | Salt spray test ≥ 1000 hours (ASTM B117) |
| MOQ | 80KG (sample available: 1–3 pieces) |
| Lead Time | 7–10 days (in-stock); 12–18 days (custom orders) |
| Certifications | ASTM B221, CE, ROHS, ISO 9001, SGS |
| Tensile Strength | 240 MPa |
| Yield Strength | 210 MPa |
| Compatibility | Universal with standard solar bracket accessories |
Key Applications Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
Vanway-Tech modular 6063 T5 anodized T-slot aluminum extrusion is tailored for solar panel angle adjustment across diverse solar energy scenarios in the Americas:
- Residential Rooftop Solar Systems: Angle-adjustable frames for household solar panels, adapting to seasonal sunlight changes
- Commercial Building Rooftop Solar Arrays: Modular adjustment structures for large commercial solar installations
- Ground-Mounted Solar Farms: Precision angle adjustment frames for utility-scale solar panel arrays
- Agro-Photovoltaic Complementary Projects: Angle-adjustable supports that balance solar power generation and crop growth
- Solar Carports & Canopies: Adjustable frames for solar carport systems, optimizing sun exposure while providing shade
- Floating Solar Power Stations: Corrosion-resistant angle adjustment structures for water-based solar panels
- Mountain & Sloped Terrain Solar Projects: Adaptable frames for adjusting panel angles on uneven landscapes
- Portable Emergency Solar Systems: Modular, quick-assemble angle adjustment frames for temporary solar power needs
Processing & Surface Treatment Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
Vanway-Tech offers specialized processing and surface treatment to enhance the performance of T-slot aluminum extrusions for solar panel angle adjustment frames:
Processing Services
- Modular Pre-Assembly: Factory-prepared assembled components for on-site quick installation
- Precision Cutting: Custom length cutting with ±0.1mm tolerance (CNC sawing)
- CNC Drilling & Tapping: Pre-drilled holes and threaded slots for angle adjustment hardware
- End Finishing: Deburring and chamfering for safe handling and seamless connections
- Custom Fabrication: Notching, slotting, and bending for specialized angle adjustment mechanisms
Surface Treatment Options
- Natural Anodization (Silver): 15–20μm thickness, excellent corrosion resistance, ideal for general outdoor use
- Black Anodization: Matte or glossy finish, enhanced UV resistance, suitable for high-aesthetic solar projects
- Hard Anodization: 30–50μm thickness, extra wear resistance, for harsh outdoor environments (e.g., coastal areas)
- Anti-Salt Spray Anodization: Specialized treatment for marine or coastal solar projects, salt spray resistance ≥ 1500 hours
Product Advantages Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
- Modular & Quick Assembly: Pre-cut and pre-drilled components enable tool-free on-site assembly, reducing installation time by 50% compared to traditional frames
- Precision Angle Adjustment: 0°–90° continuous fine-tuning allows optimization of solar panel tilt for maximum sunlight absorption year-round
- Superior Corrosion Resistance: 6063-T5 alloy combined with anodized finish withstands rain, UV radiation, and salt spray, ensuring 15+ years of outdoor service
- Lightweight & High Strength: 40% lighter than steel alternatives, simplifying transportation and installation while supporting heavy solar panels (up to 150kg/m)
- Universal Compatibility: Works seamlessly with standard solar panel brackets, hinges, and adjustment hardware from North/South American suppliers
- Low Maintenance: Anodized surface requires no painting or refinishing, reducing long-term operational costs
- Eco-Friendly & Recyclable: 100% recyclable aluminum material aligns with green energy project sustainability goals
- ASTM & ISO Compliant: Meets North American (ASTM B221) and global quality standards, ensuring compatibility with regional solar project regulations
FAQs Of Modular Assembled 6063 T5 Anodized T-slot Aluminum Extrusion:
Q1: What is the angle adjustment range of this T-slot aluminum extrusion frame?
A: The frame supports continuous angle adjustment from 0° to 90°, allowing precise fine-tuning to match local latitude and seasonal sunlight angles for optimal energy output.
Q2: Is this extrusion compatible with standard solar panels in North America?
A: Yes, it is fully compatible with 60-cell, 72-cell, and 96-cell solar panels (common in North/South America) and works with standard mounting brackets and adjustment hardware.
Q3: How durable is the anodized finish for outdoor solar projects?
A: The industrial-grade anodized finish (15–20μm) provides salt spray resistance ≥ 1000 hours (ASTM B117), ensuring no rust or degradation even in harsh outdoor conditions for 15+ years.
Q4: Can I order custom cross-section dimensions for specific solar frame designs?
A: Absolutely – Vanway-Tech offers custom cross-section dimensions (e.g., 30×60mm, 50×50mm) and wall thicknesses to match your unique angle adjustment frame requirements.
Q5: What tools are needed for on-site assembly and angle adjustment?
A: No specialized tools are required. Assembly and angle adjustment can be completed with a standard hex key (included with orders) and a level for precision alignment.
Q6: What is the lead time for delivery to the United States or Brazil?
A: In-stock extrusions ship within 7–10 days; custom orders take 12–18 days. Shipping to major US (e.g., California, Texas) and Brazilian (e.g., São Paulo, Minas Gerais) cities takes 3–6 days via air or 12–18 days via sea.
Q7: Is this product suitable for coastal solar projects with high salt exposure?
A: Yes – we offer a specialized anti-salt spray anodization option that provides salt spray resistance ≥ 1500 hours, making it ideal for coastal or marine solar power stations.
Q8: Does Vanway-Tech provide technical support for frame design and angle optimization?
A: Yes – our engineering team offers free technical support, including 2D/3D design drawings, angle calculation based on local latitude, and assembly guidelines to ensure optimal performance of your solar panel angle adjustment frames.
