Production Guide to the Industrial Grade Robot Aluminum Profile

The modern manufacturing sector demands structural materials that can withstand continuous mechanical stress while remaining highly adaptable. Standard structural steel often introduces unnecessary weight and requires permanent welding, which severely limits design flexibility in fast-evolving factories.

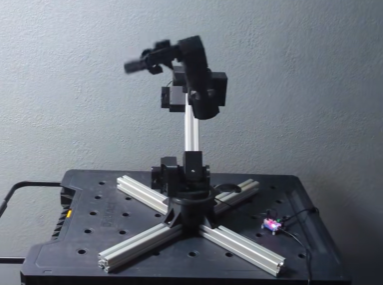

An industrial grade robot aluminum profile is a specialized, high-precision modular extrusion engineered specifically to form the skeletal frameworks, linear guide tracks, and protective enclosures of automated machinery. These profiles utilize premium aluminum alloys that undergo precise heat treatments to maximize load-bearing capacity while drastically reducing overall structural mass. Because they incorporate standard T-slot or V-slot geometries, engineers can rapidly mount sensors, brackets, and drive motors without drilling holes or burning metal.

Contact Vanway Tech today for tailored one-stop aluminium extrusion solutions.

I. Technical Specifications and Material Data

Engineers must analyze mechanical properties carefully before selecting a framing material for autonomous systems. The table below outlines the precise engineering tolerances, material compositions, and physical characteristics that define a premium industrial grade robot aluminum profile.

Technical Data Sheet: Automation Framing Profiles

We verify all our raw material batches against international metallurgy standards to ensure absolute consistency across production runs. For comprehensive physical and chemical property verification of these specific aluminum alloy classes, you can cross-reference the official structural data via the online MatWeb material database.

Contact Vanway Tech today for tailored one-stop aluminium extrusion solutions.

II. Applications in Automation

Industrial facilities deploy these specialized extrusions across numerous high-tech zones because the profiles adapt to diverse mechanical layouts smoothly.

II. 1 Heavy-Duty Robotic Workcells

Automated welding arms exert immense torsional forces when they move at maximum velocity. For this reason, system integrators build the main structural pedestals and surrounding safety fences using thick-walled modular extrusions. These frames damp high-frequency vibrations effectively, and they keep the robot securely anchored during sudden stops.

II. 2 Autonomous Guided Vehicles (AGVs)

Mobile logistics robots require a lightweight yet rugged chassis to maximize battery life and payload capacity. Our structural sections provide the perfect solution because they slash dead weight by up to fifty percent compared to welded steel. Consequently, the AGV carries heavier loads while using significantly less electrical energy.

II. 3 High-Speed Packaging Conveyors

Modern distribution centers run sortation belts twenty-four hours a day. Engineers use these hard-anodized profiles to build the conveyor side rails and support legs because the slick surface reduces friction. Furthermore, the built-in slots allow maintenance teams to adjust the height of sensors and guide rollers within minutes.

Contact Vanway Tech today for tailored one-stop aluminium extrusion solutions.

III. In-House Manufacturing and Processing Robot Aluminum Profile

We control every phase of the fabrication cycle inside our facility to maintain tight tolerances and guarantee perfect structural alignment.

Precision Billet Heating and Extrusion

The production cycle begins when we heat pure aluminum logs to approximately 450 degrees Celsius. Next, a powerful hydraulic press pushes the softened metal through a custom-hardened steel die to form the continuous profile shape. We then cool the hot metal rapidly using forced air or water sprays to lock in the desired mechanical properties.

Multi-Axis CNC Fabrication

Raw extrusions require precise secondary machining before they can function as robot parts. Therefore, we pass the cooled profiles through our multi-axis CNC milling centers to cut them to exact lengths. Our automated drills create precise mounting holes, counterbores, and clean internal threads according to your CAD drawings.

Protective Surface Treatment

Raw aluminum can suffer from minor oxidation if it works in humid factory environments. We eliminate this issue by submerging the fabricated profiles into chemical anodizing baths. This process grows a sapphire-hard oxide layer on the metal surface, which permanently prevents scratching, resists chemical spills, and gives the profile a clean, professional look.

IV. Advantages for Engineers

Investing in a premium extrusion system yields substantial long-term savings by eliminating traditional manufacturing bottlenecks.

Rapid Assembly and Modular Reconstruction

You do not need specialized welding equipment or expensive structural permits to build an automated line with our profiles. Technicians assemble complex frames using simple hand tools, standard brackets, and heavy-duty drop-in fasteners. If your factory layout changes next year, you can disassemble the entire structure and reuse the profiles in a completely new configuration.

Superior Strength-to-Weight Ratio

Aluminum weighs roughly one-third as much as industrial carbon steel, yet our engineered profiles carry immense structural loads. By placing extra metal thickness only in high-stress zones, we maximize rigidity while stripping out unnecessary weight. This helps you build sleeker machinery that speeds up factory throughput.

Seamless Integration of Moving Components

The precise geometry of our extrusion channels allows them to double as structural framing and functional machinery guides. Premium linear bearings glide smoothly inside the profile grooves without catching or vibrating. This dual-purpose design reduces the total number of parts in your machine, which shrinks your inventory and cuts your costs.

V. Frequently Asked Questions (FAQs)

Q1. What defines a high-quality industrial grade robot aluminum profile?

A high-quality profile features premium 6000-series aluminum alloys that undergo precise thermal tempering to boost yield strength. It must also maintain tight dimensional tolerances and perfect straightness to support heavy automated machinery without shifting.

Q2. How does a custom aluminum extrusions manufacturer control tolerances for robotic tracks?

A professional aluminum extrusions manufacturer uses advanced CNC machining centers and high-precision steel dies to regulate dimensions. They also run regular quality checks with digital calipers and coordinate measuring machines to verify straightness along the entire profile length.

Q3. Can an aluminum extrusions manufacturer provide custom internal geometry for hidden wiring?

Yes, an expert aluminum extrusions manufacturer can modify the internal cross-section of your die to create specialized hollow channels. These pathways allow electrical engineers to route high-voltage cables and pneumatic lines safely through the inside of the machine frame.

Q4. Why should I choose an aluminum extrusions manufacturer over a general metal distributor?

A dedicated aluminum extrusions manufacturer owns the actual production equipment, cuts custom dies, and offers direct engineering support (DFM). General distributors only sell fixed, standard stock shapes and cannot customize the dimensions or alloy properties to fit your project.

Q5. What surface finish should I order from my aluminum extrusions manufacturer for cleanroom environments?

You should request a clear or black anodized surface finish from your aluminum extrusions manufacturer. Anodizing creates a hard, non-porous layer that will not flake, chip, or shed microscopic metal dust during high-speed robotic operations.

Q6. How does an aluminum extrusions manufacturer calculate the maximum payload a profile can support?

The aluminum extrusions manufacturer calculates structural limits by analyzing the cross-sectional moment of inertia alongside the yield strength of the chosen alloy. They run finite element analysis (FEA) simulations to check for potential bending under specific factory loads.

Q7. Can a custom aluminum extrusions manufacturer match specific corporate colors on structural frames?

Yes, a versatile aluminum extrusions manufacturer can apply durable powder coatings in thousands of different RAL colors. This protective coating provides excellent scratch resistance while matching the visual branding guidelines of your automated factory floor.

Q8. What is the typical lifespan of a profile made by an aluminum extrusions manufacturer?

Profiles made by a premier aluminum extrusions manufacturer can last for decades because aluminum naturally resists environmental rust. The durable anodized layer protects the underlying metal from heavy wear, chemical washdowns, and continuous industrial vibrations.

VI. Why Partner with Vanway Tech for Your Automation Projects

Vanway Tech stands out as a leading industrial grade robot aluminum profile manufacturer because we master the art of high-precision extrusion. Our modern factory handles everything from initial blueprint design to final surface finishing under one roof. We focus heavily on producing heavy-duty structural frames, modular T-slot systems, and robust conveyor components that power advanced automation lines around the world. Because we maintain strict control over our metal sourcing and tooling production, we ensure that every batch of aluminum exhibits perfect structural uniformity and flawless finish quality.

Our technical team excels at providing detailed Design for Manufacturing (DFM) support to optimize your engineering drawings before production begins. Vanway Tech operates high-capacity extrusion lines alongside multi-axis CNC machining centers, which means we cut, mill, drill, and tap your profiles with extreme precision. We eliminate middleman markup fees and logistical delays by managing your entire project in-house.

When you choose Vanway Tech, you partner with a dedicated manufacturer that accelerates your product assembly, slashes your shipping expenses, and delivers reliable, factory-ready structural components that stand the test of time.

“We don’t just supply raw metal; we match the precise alloy grade, wall thickness, and surface finish to your specific environmental and mechanical challenges. From heavy-duty automation frames to complex micro-heat sinks, our one-stop CNC fabrication ensures that every custom profile is ready for immediate assembly upon delivery.”

To know more about Our Custom Aluminum Extrusions Processing Capability. →
