What is 6063 Anodized Aluminum Solar Panel Brackets?

Anodized aluminum brackets are indispensable structural components engineered to deliver maximum rigidity and weather protection for residential, commercial, and utility-scale solar installations. Manufactured from high-strength 6063-T5 aluminum alloy, these precision components undergo an advanced electrolytic anodization process that creates a thick, self-healing oxide layer, preventing rust, galvanic corrosion, and degradation in harsh coastal or industrial environments. Vanway Tech designs and manufactures custom 6063 anodized aluminum brackets to secure photovoltaic modules against extreme dynamic loads, including typhoon-force wind uplift and heavy snow accumulation.

To meet the structural demands of modern clean energy projects, Vanway Tech integrates these heavy-duty brackets into complete Aluminium Solar Panel Mounting systems. Their superior strength-to-weight ratio minimizes dead load pressure on roof substrates while simplifying handling and installation on-site. Vanway Tech offers a versatile range of Solar Panel Aluminum Brackets compatible with ground mounts, tilt-leg kits, and complex Solar Roof Aluminum Mounting Rails, providing seamless adaptability across flat, tiled, or corrugated metal roofing applications.

By leveraging advanced aluminum solar panel frame extrusion techniques, Vanway Tech crafts complex geometric profiles with pre-machined mounting slots and integrated grounding channels. These custom extrusions accelerate installation workflows, reduce overall balance-of-system (BOS) costs, and ensure micro-crack-free clamping onto specialized PV modules. Ultimately, Vanway Tech delivers high-precision mounting solutions that guarantee 25+ years of structural integrity and operational reliability for global solar projects.

Spec Details of Anodized Aluminum Brackets – Aluminum Solar Panel Mounting

Technical Compliance & Testing Standards Notice of Aluminum Solar Panel Mounting:

All physical and mechanical properties listed above are validated according to international structural and reliability engineering standards, including ASTM B221 for architectural aluminum extrusions, ISO 7599 / ISO 9227 for protective anodization and neutral salt spray corrosion resistance, IEC 61215-2 for static mechanical load capacities, and UL 2703 for electrical grounding continuity.

Vanway-Tech丨The Leading Aluminum Solar Panel Mounting Manufacturer and Exporter From China

Contact Vanway Tech today for your Aluminum Solar Panel Mounting needs.

Different Types of Aluminum Solar Panels Mounting

Aluminum solar panel mounting systems provide the structural connection between photovoltaic modules and the roof, ground, or supporting framework. Vanway Tech manufactures a wide range of Aluminium Solar Panel Mounting profiles and components using aluminum extrusion technology, allowing solar installers, distributors, engineering contractors, and PV system manufacturers to select the right profile according to panel configuration, installation environment, structural load, and project design.

Unlike simple off-the-shelf mounting components, Vanway Tech develops aluminum extrusion profiles around the actual requirements of each solar project. The company can customize profile dimensions, wall thickness, mounting channels, holes, slots, surface finishes, and cutting lengths to create mounting components that integrate efficiently with different photovoltaic structures.

Solar mounting structures can be classified according to their installation position and structural function. Vanway Tech commonly supplies aluminum mounting rails, panel frames, brackets, channels, and customized extrusion profiles for rooftop, ground-mounted, carport, and architectural solar applications.

Custom Solar Extrusion Profile丨Solar Panel Aluminum Frames

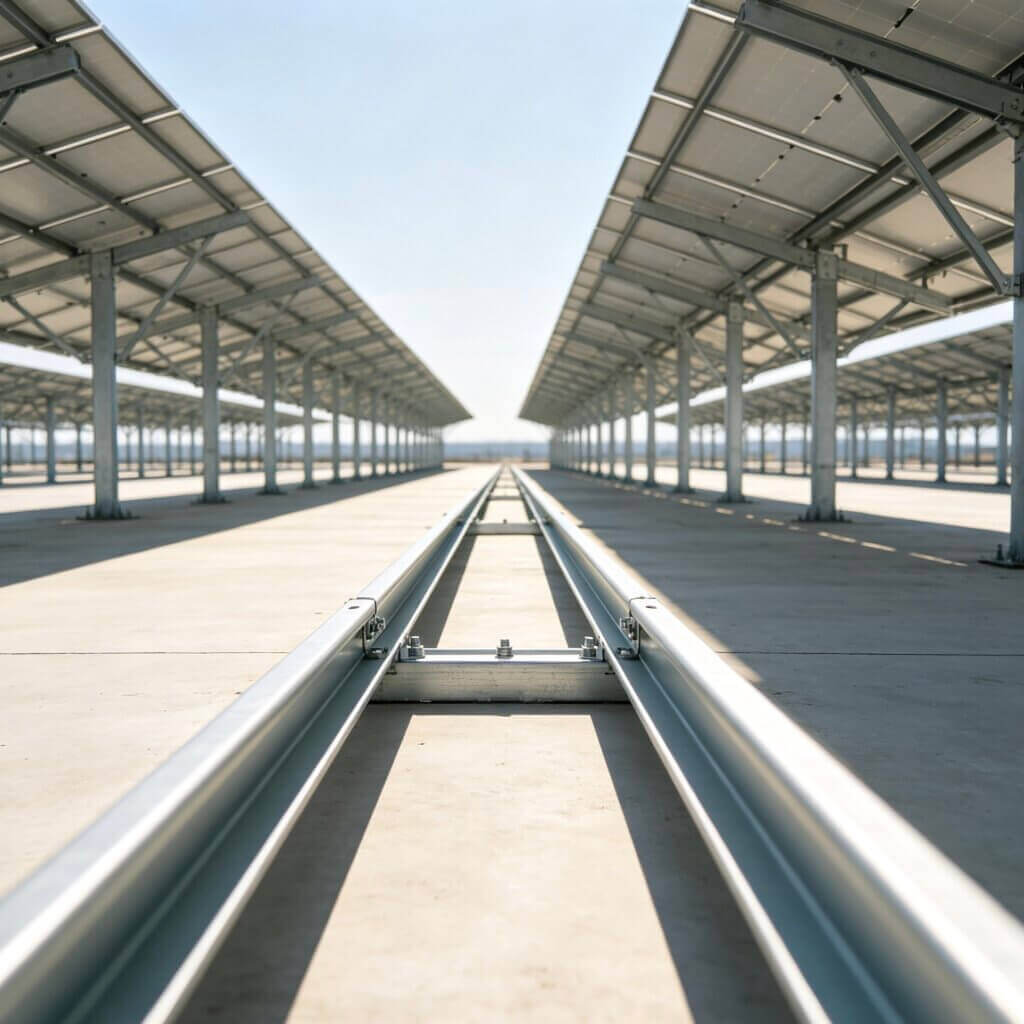

Solar Roof Aluminum Mounting Rails

Solar Roof Aluminum Mounting Rails form one of the most widely used components in rooftop photovoltaic systems. Vanway Tech extrudes these rails with continuous mounting channels that allow solar panels and accessories to be positioned securely along the roof structure.

For residential and commercial rooftop projects, Vanway Tech can manufacture rail profiles with different cross-sections and dimensions to accommodate various panel sizes and installation methods. The lightweight aluminum construction helps reduce unnecessary structural weight while maintaining the rigidity required for photovoltaic mounting applications.

Vanway Tech also provides machining services such as cutting, drilling, slotting, and other profile processing when a project requires pre-prepared mounting rails. This can help installers reduce field fabrication and improve installation consistency.

Solar Panel Aluminum Brackets

Solar Panel Aluminum Brackets connect photovoltaic modules, rails, and supporting structures at critical mounting points. Vanway Tech manufactures brackets in different geometries according to the required connection method, including L-shaped, T-shaped, corner, end, and customized bracket designs.

For outdoor photovoltaic systems, Vanway Tech can produce anodized aluminum brackets to provide a durable surface finish with improved resistance to outdoor exposure. The anodized surface also gives the components a clean metallic appearance, which makes them suitable for visible architectural solar installations.

The company can further customize bracket dimensions, hole locations, screw positions, and connection interfaces according to customer drawings. This allows the same aluminum mounting system to be adapted to different module frames and structural configurations.

Aluminum Solar Panel Frame Extrusion

An aluminum solar panel frame extrusion is designed to form the perimeter structure of a photovoltaic module or customized solar assembly. Vanway Tech uses extrusion technology to produce continuous aluminum profiles with controlled cross-sectional geometry, followed by cutting and machining according to project requirements.

For standard solar panels, the frame profile can be designed around the module dimensions and glass thickness. For non-standard modules, BIPV systems, solar façades, and architectural photovoltaic products, Vanway Tech can develop a customized cross-section that integrates mounting channels, drainage features, fastener locations, and other functional elements.

This approach allows the aluminum frame to serve both structural and architectural purposes while maintaining a streamlined appearance.

Anodized Aluminum Brackets for Solar Mounting

For outdoor solar applications, material selection and surface treatment directly influence long-term component performance. Vanway Tech produces anodized aluminum brackets and related mounting profiles with anodized finishes designed to improve surface durability and corrosion resistance.

Anodizing creates a controlled oxide layer on the aluminum surface rather than simply applying a conventional paint layer. This makes anodized profiles particularly suitable for exposed mounting components where resistance to moisture, UV exposure, and general outdoor conditions is important.

Vanway Tech can also provide other finishing options, including powder coating and customized surface treatments, depending on the project requirements.

Aluminum Alloy Options for Solar Mounting Profiles

Vanway Tech selects aluminum alloys according to the required balance between extrusion performance, mechanical properties, corrosion resistance, surface quality, and project cost.

6063 Aluminum for Solar Extrusion Profiles

6063 aluminum is widely used for architectural and extrusion applications because it offers excellent extrudability and surface finishing characteristics. Vanway Tech uses 6063 aluminum where the project requires complex profile geometry, consistent extrusion quality, and an attractive surface finish.

This alloy is particularly suitable for Aluminium Solar Panel Mounting components such as rails, brackets, channels, and frame profiles where corrosion resistance and profile appearance are important.

6061 Aluminum for Higher-Strength Components

For applications requiring higher mechanical strength, Vanway Tech can evaluate 6061 aluminum for selected structural components. Its higher strength makes it appropriate for mounting applications where the profile must withstand greater mechanical loads.

The final alloy selection should be based on the complete engineering design, including span, loading conditions, connection method, environmental exposure, and applicable project standards.

Surface Finishing Options for Aluminum Solar Mounting

Vanway Tech provides several surface finishing options for photovoltaic aluminum profiles.

Anodizing

Anodizing forms a protective oxide layer on the aluminum surface and can provide a durable metallic appearance. It is commonly selected for anodized aluminum brackets, solar rails, frame profiles, and other exposed components.

Powder Coating

Powder coating allows customers to specify different colors and surface appearances. It can be used when the solar mounting structure needs to coordinate with building façades, roofs, carports, or other architectural elements.

Mill Finish

For projects where surface appearance is less critical or where the profile will undergo additional processing, Vanway Tech can supply aluminum extrusion in mill finish according to the customer’s specifications.

Custom Aluminum Solar Panel Mounting Solutions

Every photovoltaic project does not use the same mounting geometry. Roof structures, panel dimensions, wind conditions, installation angles, and architectural requirements can vary considerably.

Vanway Tech therefore supports custom aluminum extrusion development from engineering drawings or samples. The typical process includes:

1. Drawing Review – Vanway Tech engineers review the customer’s CAD drawing, PDF, STEP file, or sample to understand the required profile geometry.
2. Die Development – A dedicated extrusion die is developed according to the approved cross-section.
3. Sample Production – Vanway Tech produces initial samples for dimensional and functional verification.
4. Extrusion Production – Once the profile is approved, the company proceeds with controlled aluminum extrusion production.
5. Surface Treatment – Anodizing, powder coating, or another specified finish can be applied.
6. Machining and Cutting – Rails, brackets, and frame profiles can be cut, drilled, milled, or otherwise processed according to the project drawing.
7. Quality Inspection – Finished components are inspected for dimensions, appearance, surface condition, and other agreed specifications before shipment.

This workflow allows Vanway Tech to move beyond standard solar mounting profiles and provide custom Aluminium Solar Panel Mounting components for specialized PV projects.

Applications of Aluminum Solar Mounting Systems

Vanway Tech’s aluminum mounting profiles can be configured for a wide range of photovoltaic applications.

Residential Solar Rooftops

For residential installations, lightweight Solar Roof Aluminum Mounting Rails can provide a practical connection between roof structures and photovoltaic panels while keeping the mounting system streamlined.

Commercial and Industrial Rooftops

Large commercial and industrial projects often require longer rails, customized connection points, and consistent dimensional control across large production volumes. Vanway Tech can develop aluminum extrusion profiles according to the project layout and installation method.

Solar Carports

Solar carports require mounting structures that combine photovoltaic support with architectural appearance. Customized aluminum rails, brackets, and frame profiles can help integrate the solar array into the carport structure.

Building-Integrated Photovoltaics

BIPV projects frequently require non-standard frame geometries. Vanway Tech can manufacture an aluminum solar panel frame extrusion around specific panel dimensions and architectural requirements, allowing the solar module and supporting structure to work as one integrated system.

Why Choose Vanway Tech for Aluminum Solar Mounting?

Vanway Tech combines aluminum extrusion manufacturing with profile customization and secondary processing to provide complete solutions for photovoltaic mounting applications.

The company can support:

• Custom aluminum extrusion profiles
• Anodized aluminum brackets
• Solar Panel Aluminum Brackets
• Solar Roof Aluminum Mounting Rails
• Customized aluminum solar panel frame extrusion
• 6063 and other suitable aluminum alloys
• Anodizing and powder coating
• Cutting, drilling, milling, and other machining
• Customized profile dimensions and cross-sections
• OEM and project-based production

For B2B customers, this integrated manufacturing approach can simplify sourcing by allowing multiple solar mounting components to be developed and produced through one supplier. More importantly, Vanway Tech can adjust the extrusion design to the actual requirements of the photovoltaic project rather than forcing the project to fit a fixed standard profile.

Get Custom Aluminum Solar Mounting Profiles from Vanway Tech

Whether you need standard Aluminium Solar Panel Mounting, customized Solar Panel Aluminum Brackets, durable Solar Roof Aluminum Mounting Rails, or a project-specific aluminum solar panel frame extrusion, Vanway Tech can develop the profile around your engineering requirements.

Send Vanway Tech your CAD drawing, STEP file, PDF drawing, dimensions, or existing sample. The engineering team can evaluate the profile structure, recommend a suitable aluminum alloy and surface treatment, and develop an extrusion solution for your photovoltaic application.

Applications of Aluminum Frame for Solar Panel

The Aluminum Frame for Solar Panels is meticulously engineered to provide structural integrity, robust protection, and optimal performance for photovoltaic systems across residential, commercial, and utility-scale installations. By securely clasping the perimeter of solar modules, these high-tensile frames ensure flawless, resilient integration into any mounting environment.

Beyond structural support, this heavy-duty framing serves a vital dual nature: acting as a rugged mechanical shield against high wind loads, heavy snow pressure, and physical twisting, while doubling as an integrated grounding network and environmental barrier to maximize the longevity and power-generation efficiency of the enclosed solar cells.

Residential Rooftop Installations

Modern solar installers frequently deploy aluminum-framed modules across suburban homes and urban residential roofs. Manufacturers engineer these lightweight yet incredibly strong frames to interface seamlessly with racking systems on asphalt shingles, clay tiles, or standing seam metal roofs. This creates a low-profile, clean architectural aesthetic while ensuring the system can withstand intense localized wind uplift, elevating home energy independence without compromising structural or visual harmony.

Commercial and Industrial (C&I) Roofs

In large-scale corporate facilities, manufacturing plants, and logistics hubs, aluminum-framed solar panels act as the ultimate distributed energy solution. Mounted across expansive flat or low-slope roofs, the rigid aluminum frame prevents cell micro-cracking during installation and thermal expansion. The frame’s specialized anodized layer protects the system from harsh industrial atmospheric pollutants, while its high strength-to-weight ratio minimizes the dead load added to massive commercial roof structures.

Ground-Mounted Arrays and Solar Farms

Utility-scale energy developers and agricultural projects utilize these robust aluminum frames to optimize multi-megawatt tracking and fixed-tilt systems. Project managers install them across open terrain, deserts, and rural landscapes where environmental exposure is extreme. The aluminum alloy’s inherent corrosion resistance ensures a maintenance-free life cycle against soil moisture and blowing sand, maintaining rigid structural alignment so the panels can track the sun efficiently for decades.

Coastal, Marine, and High-Humidity Environments

In challenging geographical zones like seaside properties, offshore tracking arrays, or high-humidity regions, these specialized aluminum-framed profiles act as a critical defense system. Positioned safely against saltwater spray and persistent mist, the heavily anodized or electrophoretically coated aluminum prevents galvanic corrosion and material degradation. Because the premium housing shields the glass edges and backsheet from moisture ingress, it dramatically lowers operational downtime and ensures reliable, continuous power generation in high-salinity atmospheres.

Precise Processing Workflows of PV Panel Frame

Manufacturers implement a series of highly precise processing workflows to transform raw materials into premium, high-strength solar framing systems.

Smelting and Custom Profile Extrusion

The smelting furnace melts high-purity aluminum ingots (typically premium 6000-series alloys) at exact temperatures, and a heavy-duty automated extrusion press forces the heated metal through custom-engineered die molds. This process forms the initial structural cross-section, creating the precise cavity dimensions, internal screw grooves, and securing lips required to grip the solar module’s glass and backsheet in a single, continuous pass.

T6 Thermal Aging Treatment

Subsequently, manufacturers apply a strict T6 thermal aging treatment to the extruded framing profiles. This controlled solution heat-treating and artificial cooling cycle alters the molecular structure of the alloy, and this process increases the tensile strength, yield strength, and hardness of the aluminum significantly to ensure the frame will not deflect or deform under heavy wind loads or massive snow accumulation.

Precision Cutting and CNC Punching

Next, high-speed automatic cutting machines slice the long profiles into precise, sharp-angled lengths (typically incorporating flawless 45-degree miter cuts for seamless corner joints). Advanced CNC machinery is then utilized to perform accurate drainage hole punching, grounding point drilling, and mounting slot milling, creating perfectly uniform and burr-free openings that facilitate rapid on-site installation and effective water runoff.

Anodizing and Surface Protection

Finally, the fabricated components undergo an advanced anodizing surface treatment. This electrochemical process grows a controlled, durable oxide layer on the aluminum surface, and the resulting coating enhances wear, UV, and salt-spray corrosion resistance while delivering a premium, weather-resistant finish that guarantees a reliable 25-to-30-year operational lifespan in the harshest outdoor environments.

Vanway-Tech 丨 Premium Quality Solar Module Frame Aluminum Extruded Profiles Supplier Since 2015

Contact Vanway Tech today for your Aluminum LED Extrusion needs.

The Advantages of Vanway Tech’s Aluminum Frame for Solar Panels

FAQs Regarding Aluminum Extrusion Solar Panel Frame

1. What is the standard MOQ for Vanway Tech’s solar panel aluminum frames?

• Standard Profiles: 2 to 3 metric tons per profile design (suitable for standard module dimensions like 72-cell or 144-cell half-cut panels).
• Bespoke/Customized Frameworks: 5 metric tons per production run to accommodate custom die-mold engineering and press calibration.

2. Can Vanway Tech provide customized punching, drilling, and precision cutting to fit our module blueprints?

Yes. Equipped with advanced automated CNC machining centers, we offer full-service customization. We can execute precision miter cuts (typically 45-degree corner joints) and punch customized drainage holes, grounding slots, and mounting holes exactly according to your PV module’s engineering drawings.

3. How does Vanway Tech package these high-precision solar frames to prevent surface scratching and warping during sea freight?

Frames are layered with protective PE interleaving film or individual plastic sleeves to eliminate metal-to-metal friction. They are then tightly strapped in heavy-duty, waterproof bundles and loaded onto reinforced steel-strapped wooden pallets or seaworthy crates. This structure prevents bending, twisting, or moisture corrosion during ocean transit.

4. What international quality, structural, and environmental certifications do your solar frames carry?

Our solar extrusion profiles comply fully with ISO 9001:2015 quality management, TUV, and CE benchmarks. They are manufactured using premium 6005-T6 or 6063-T6 structural-grade aluminum alloys, ensuring compliance with global tier-1 solar panel structural load requirements and smooth customs clearance.

5. What are the typical factory lead times for a container-load B2B solar frame order?

• Mass Production (Existing Molds): 15 to 20 working days for a Full Container Load (FCL).
• New Mold Customization: 25 to 30 days (includes 7–10 days for custom tool/die fabrication, sample testing, and subsequent mass extrusion/anodizing).

6. Are the corner keys (corner connectors) and sealing gaskets included in the bulk pricing?

We offer flexible supply chain solutions tailored to your production line: you can purchase via per-ton/per-piece raw frame profile pricing, or opt for complete turnkey framing kits that include the pre-cut side/top frames along with matching high-strength aluminum corner keys and integrated EPDM sealing tapes.

7. What range of glass thicknesses and module profiles are compatible with your extrusion dies?

Our standard internal channel configurations comfortably support industry-standard PV glass thicknesses ranging from 2.0mm to 3.2mm (including dual-glass and bifacial modules) with profile heights of 30mm, 35mm, or 40mm. Custom tongue-and-groove shapes can be engineered to match your specific EVA/backsheet compression tolerances.

8. What are your accepted payment terms and trade clauses for international B2B buyers?

Trade Clauses: We fully support EXW, FOB, CIF, and DDP terms to streamline your logistics.

Payment Terms: T/T (30% deposit upfront to initiate extrusion tool setup/raw material preparation, 70% balance paid before dispatch or against the Bill of Lading copy). Irrevocable L/C at sight is also acceptable for large-scale utility projects.

Contact Vanway Tech today for your Solar Module Frame needs.

How to Choose a Reliable Solar Frame Extrusion Supplier

Vanway Tech 丨The trusted partner for superior wholesale aluminum solar panel frame solutions

Selecting a reliable manufacturing partner determines the ultimate quality and market competitiveness of your PV modules. Vanway-tech stands out as a premier global manufacturer specializing in high-precision Solar Panel Aluminum Frames. We operate state-of-the-art automated extrusion lines and advanced anodizing facilities to deliver flawless profiles every time. Our experienced engineering team works closely with clients to design custom dimensions that perfectly fit next-generation thin-film and crystalline silicon modules.

Furthermore, our strict quality control department tests every batch for dimensional accuracy, coating thickness, and tensile strength. We always utilize premium raw materials to guarantee that our frames pass the most rigorous international load tests. By choosing Vanway-tech, you secure a stable supply chain, competitive factory-direct pricing, and unmatched technical support. Contact Vanway-tech today to elevate your solar manufacturing quality and accelerate your clean energy goals.

Solar Module Frame Size and Application Reference Table – Vanway Tech

Vanway Tech’s Strengths on Led Aluminum Profiles Manufacutring And Exporting

• High-Tensile 6000-Series Alloy Engineering
• Advanced Weatherproof Anodizing Tech
• High-Yield Structural Rigidity Against Wind & Snow Load
• Rapid Custom Die-Mold Prototyping Services
• Strict Zero-Defect Quality Control Standards
• Optimized Logistics Mitigating Ocean Transit Damage
