Pin-Fin Extruded Aluminum Heat Sink | CNC Machined For Energy-Storage Battery Cabinet | Vanway Tech
PRODUCT PARAMETERS
Description

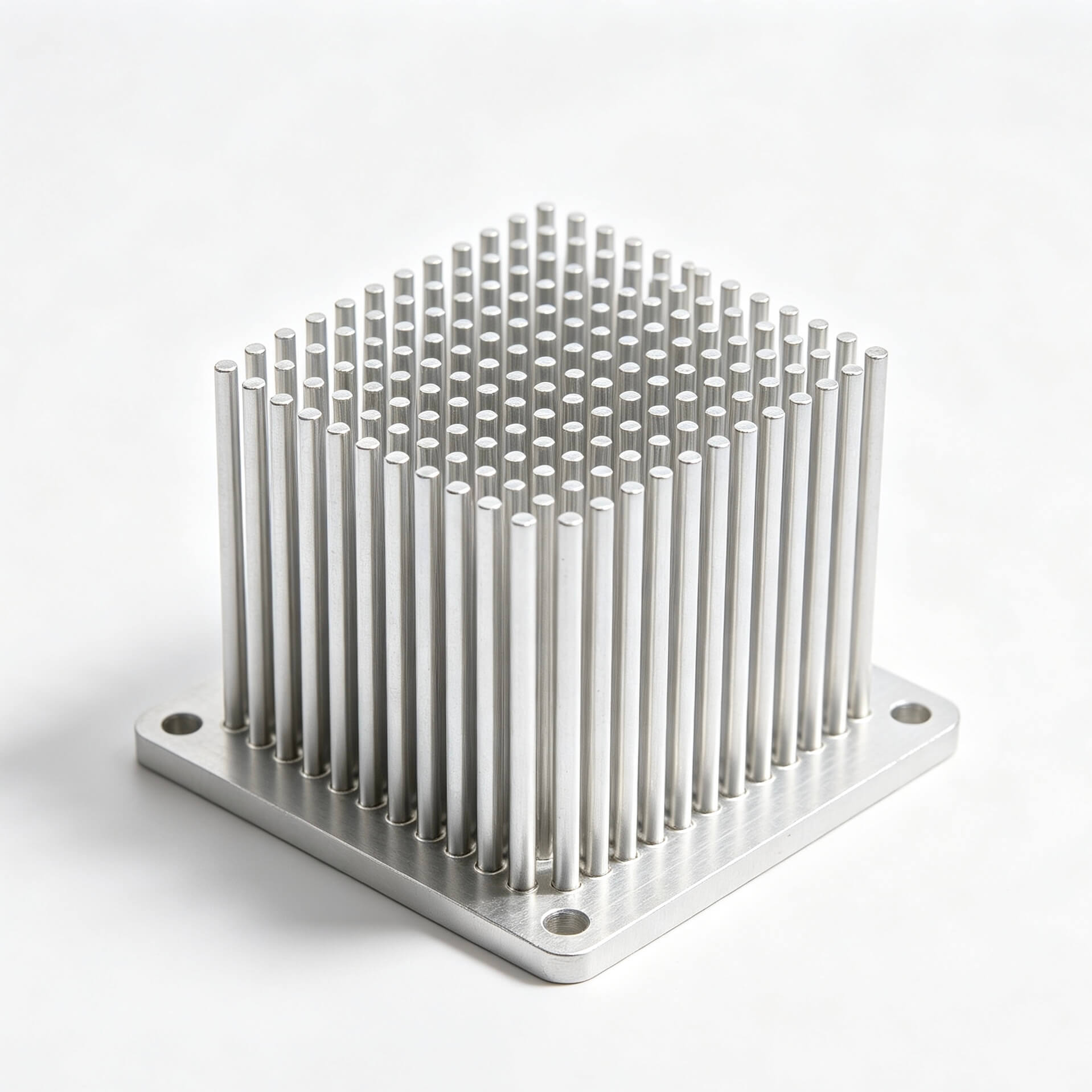

Pin-Fin Extruded Aluminum Heat Sink | CNC Machined For Energy-Storage Battery Cabinet
1. Detailed Description Of Pin-Fin Extruded Aluminum Heat Sink for Energy-Storage Battery Cabinet
1.1 Core Design & Craftsmanship
Our CNC Machined Pin-Fin Extruded Aluminum Heat Sink for Energy-Storage Battery Cabinet adopts integrated aluminum extrusion molding technology, paired with high-precision CNC secondary machining, abandoning traditional flat fin heat dissipation structure. The unique three-dimensional pin-fin layout maximizes the heat dissipation surface area per unit volume, greatly improving air convection efficiency and heat exchange speed. Different from ordinary stamped heat sinks, our extruded aluminum heat sink has an integrated seamless structure, no loose parts, stronger pressure resistance and durability, perfectly adapting to long-term uninterrupted working conditions of energy storage battery cabinets.
As a professional heat sink manufacturer and supplier, we select high-purity 6063-T6 aluminum alloy raw materials for all extruded aluminum heat sinks. This material features ultra-high thermal conductivity, light weight, and excellent corrosion resistance. After precision CNC machining, the base flatness of the heat sink is controlled within ±0.02mm, ensuring full close contact with battery module heating parts, minimizing thermal resistance, and realizing rapid heat conduction and diffusion. The surface adopts anodizing anti-oxidation treatment, which effectively resists dust, moisture, and electrochemical corrosion in complex industrial environments, and long-term maintains efficient heat dissipation performance.
1.2 Application-Oriented Performance Optimization
Aiming at the high-power and long-operation characteristics of energy storage battery cabinets, our CNC machined pin-fin heat sink is optimized in structural design: the dense and uniform pin-fin arrangement effectively breaks the air boundary layer, avoids heat accumulation in the closed cabinet, and reduces the overall operating temperature of the battery pack. The lightweight aluminum alloy design will not increase the load of the battery cabinet, and the rigid integrated structure can resist vibration and impact during equipment operation and transportation, reducing the failure rate of thermal components. All products comply with industrial environmental protection and safety standards, suitable for indoor and outdoor energy storage cabinet scenarios.
2. Product Technical Parameters
As a professional manufacturer and supplier of extruded aluminum pin-fin heat sinks, we support full-size customization. The following are standard technical parameters for energy storage battery cabinet models:
| Parameter Item | Standard Specification | Remark |
|---|---|---|
| Product Name | CNC Machined Pin-Fin Extruded Aluminum Heat Sink | For Energy-Storage Battery Cabinet |
| Material | 6063-T6 High Purity Aluminum Alloy | High thermal conductivity, customizable 6061 alloy |
| Thermal Conductivity | 205 W/(m·K) | Excellent heat dissipation efficiency |
| Processing Technology | Aluminum Extrusion + CNC Precision Machining | Integrated molding, high precision |
| Surface Treatment | Natural Anodizing / Black Anodizing / Sandblasting | Anti-corrosion, anti-oxidation |
| Size Tolerance | ±0.02mm | Strict CNC precision control |
| Pin Fin Specification | Round/Square/Oval Pin, Custom Height & Spacing | Support personalized customization |
| Working Temperature | -40℃ ~ 120℃ | Adapt to extreme industrial environments |
| Application Scene | Energy Storage Battery Cabinet, Industrial Battery Module | Professional energy storage thermal solution |
| Custom Service | OEM / ODM / Drawing Customization | Factory direct customization |
Vanway Tech 丨 Your Reliable Extruded Aluminum Heat Sink Manufacturer From China Since 2015
Contact Vanway Techfor your Extruded Aluminum Profiles Solutions
3. Advantages Of Pin-Fin Extruded Aluminum Heat Sink for Energy-Storage Battery Cabinet
3.1 Superior Thermal Performance, Stable Battery Operation
Our CNC Machined Pin-Fin Extruded Aluminum Heat Sink adopts a three-dimensional pin-fin structure, which has a 30% larger heat dissipation area than traditional linear fin heat sinks of the same volume. As a professional heat sink manufacturer, we optimize the pin fin density and height through professional thermal simulation, effectively improving air circulation efficiency, quickly taking away heat generated by the energy storage battery during charging and discharging, avoiding battery thermal runaway, and ensuring the long-term stable operation of the energy storage cabinet system.
3.2 Precision CNC Machining, High Matching Degree
Different from ordinary extruded heat sinks, our products are processed by multi-axis CNC precision machining after extrusion molding. The base fitting surface is smooth and flat with tiny thermal resistance, which can perfectly fit the battery module. All mounting holes and positioning grooves are precisely opened by CNC, with high dimensional accuracy and no assembly deviation. As a reliablesupplier, we ensure every customized extruded aluminum heat sink can perfectly match different models of energy storage battery cabinets.
3.3 Durable & Environmentally Friendly, Low Maintenance Cost
Made of high-quality 6063-T6 aluminum alloy, the pin-fin aluminum heat sink has high strength, light weight, no deformation, and good shock resistance. After anodizing surface treatment, it has excellent moisture-proof, dust-proof and anti-corrosion capabilities, adapting to harsh industrial and outdoor energy storage scenarios. The integrated molding process eliminates the risk of fin falling off, with ultra-low failure rate and almost no later maintenance cost, helping customers reduce equipment operation costs.
3.4 Factory Direct Supply, Customization & Cost-Effective

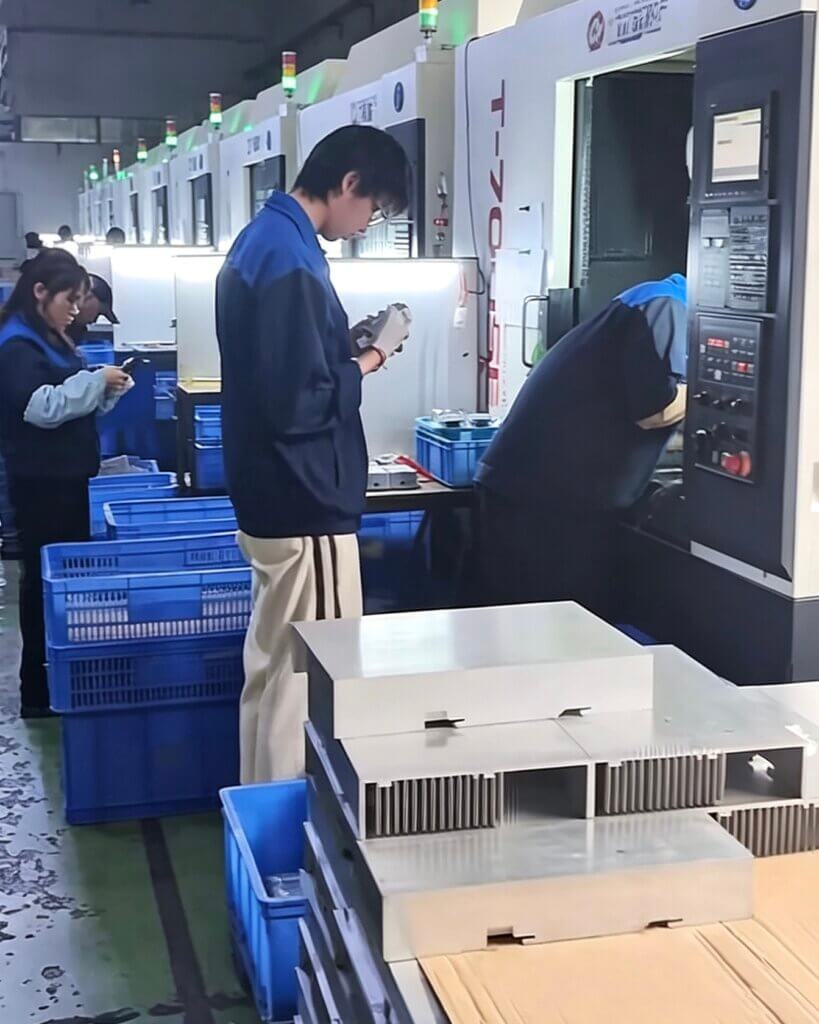

We are a direct manufacturer specializing in CNC machined pin-fin extruded aluminum heat sinks, with complete production lines from aluminum extrusion, CNC machining to surface treatment, eliminating intermediate distributors. We provide bulk wholesale, small batch trial production and full-custom services, with flexible prices and stable delivery cycles. As a trustworthy long-term supplier for global energy storage enterprises, we can quickly respond to customer drawing customization and sample order needs.

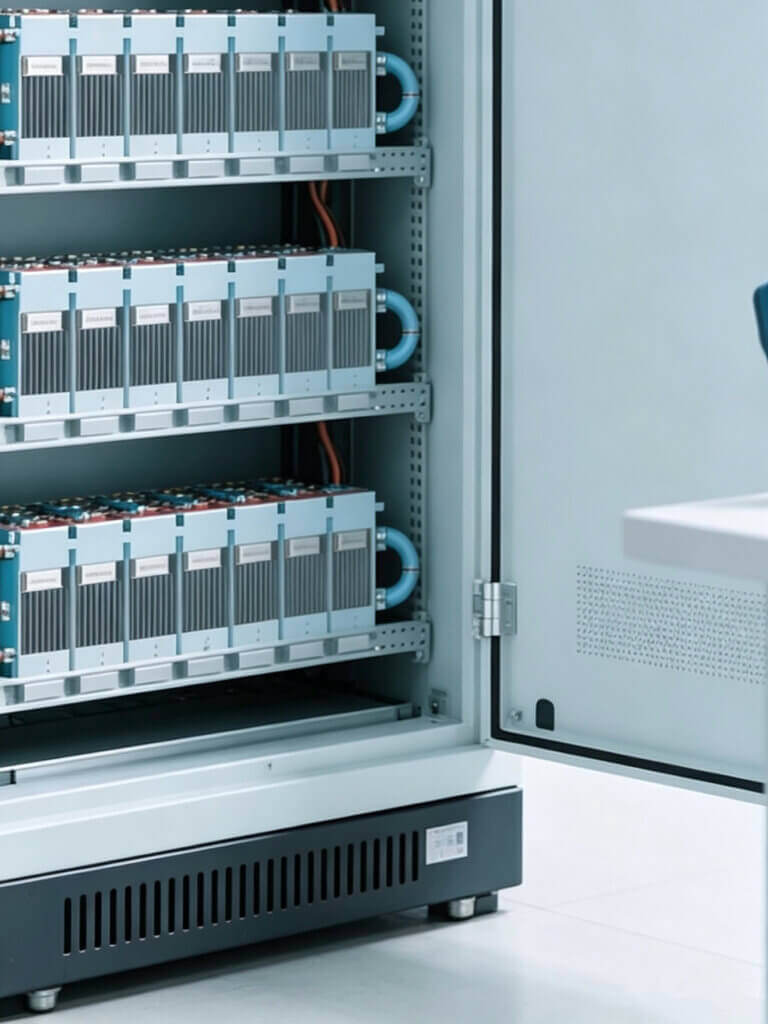

4. Wide Application Range
As a professional manufacturer and supplier of extruded aluminum pin-fin heat sinks, our products are specially optimized for energy storage thermal management and are widely used in various energy storage and industrial power equipment scenarios:
- Commercial & Industrial Energy Storage Battery Cabinets
- Household Energy Storage System Battery Modules
- Off-Grid Solar Energy Storage Equipment
- Wind Power Matching Energy Storage Cabinets
- UPS Power Supply Battery Cabinets
- Industrial High-Power Battery Pack Cooling Systems
- New Energy Power Storage Integrated Equipment
Our CNC machined aluminum heat sinks have been exported to Europe, America, Southeast Asia, the Middle East and other regions, and have been widely recognized by global energy storage equipment manufacturers for their stable performance and reliable quality.
Vanway Tech 丨 The Reliable Aluminum Aluminum Heat Sink Exporter From China Since 2015
Contact Vanway Tech today for one-stop aluminium extrusion solutions for Aluminum Solar Panel Frame project.
5. Frequently Asked Questions (FAQ)
Q1: Are you a real manufacturer or trading company for CNC machined pin-fin extruded aluminum heat sinks?
We are a professional direct manufacturer and reliable bulk supplier focusing on extruded aluminum heat sinks for energy storage battery cabinets for more than 10 years. Moreover, We have independent extrusion workshops, CNC machining workshops and quality inspection workshops, with complete production and processing capabilities. We support factory direct sales, OEM/ODM customization, and provide factory inspection services for all customers.
Q2: Can you customize the size and pin-fin structure of the energy storage battery cabinet heat sink?
Yes. As a professional customized heat sink manufacturer, we fully support personalized customization of all CNC machined pin-fin heat sinks. You can provide drawings, samples or specific parameter requirements (size, pin fin height, spacing, shape, mounting position, surface treatment, etc.). Our engineering team will design and optimize the solution according to your energy storage cabinet heat dissipation needs, and provide free sample testing services.
Q3: What material do you use for the extruded aluminum heat sink for energy storage cabinets?
Our standard product adopts high-purity 6063-T6 aluminum alloy, which has high thermal conductivity, light weight and excellent molding effect, which is the most suitable material for energy storage equipment heat dissipation. We can also customize 6061 aluminum alloy materials according to customer needs to meet higher strength and wear resistance requirements. All raw materials are strictly screened to ensure stable heat dissipation performance and long service life of extruded aluminum heat sinks.
Q4: What is the delivery time for bulk orders of CNC machined aluminum heat sinks?
As a powerful supplier with complete production lines, our sample order delivery time is 3-5 working days, and bulk order mass production delivery time is 7-15 working days according to the order quantity and customization difficulty. We have sufficient raw material inventory and mature production scheduling system to ensure on-time delivery for global customers, and support urgent order priority production.
Q5: What surface treatment options are available for your pin-fin heat sinks?
We provide multiple surface treatment processes for CNC machined pin-fin extruded aluminum heat sinks, including natural anodizing, black anodizing, sandblasting anodizing, conductive oxidation, etc. These treatments can effectively improve the corrosion resistance, oxidation resistance and insulation of the heat sink, adapt to different complex working environments of energy storage battery cabinets, and meet different customer appearance and functional requirements.
Q6: How to ensure the quality of your energy storage heat sink products?
As a formal heat sink manufacturer, we implement full-process quality control. From raw material incoming inspection, extrusion molding detection, CNC machining precision testing, to finished product performance testing and packaging inspection, every link has strict quality standards. Allextruded aluminum heat sinks are tested for flatness, dimensional tolerance and thermal conductivity to ensure 100% qualified delivery, and we provide after-sales quality guarantee services.
Q7: What are the advantages of your pin-fin heat sink over traditional fin heat sinks for energy storage cabinets?
Compared with traditional flat fin heat sinks, our CNC machined pin-fin extruded aluminum heat sink has a three-dimensional three-sided heat dissipation structure, with 30%-50% higher heat dissipation efficiency. The integrated extrusion + CNC precision machining process has better structural stability, no fin deformation or falling off. It is more adaptable to the closed and long-term working state of energy storage battery cabinets, can effectively reduce battery temperature difference, and prolong the service life of energy storage batteries.
