Extruded Aluminum Heat Sink Profile for 12mm LED Strip

1. Product Overview Of Extruded Aluminum Heat Sink Profile:

Fundamentally, Vanway Tech engineers the extruded aluminum heat sink profiles to meet the highest standards of modern linear lighting. Moreover, by acting as both a structural housing and a thermal management system, these profiles unlock the full potential of high-density LED strips.

1.1 What is a 12mm LED Aluminum Heat Sink Profile?

Specifically, Vanway-tech precision-manufactures this linear channel from premium aluminum alloys. Furthermore, we dimension the internal width strictly between 12.2mm and 12.5mm. Consequently, it perfectly accommodates standard 12mm flexible, rigid, or COB LED tape lights.

1.2 Core Purpose in Lighting Design

High-power LEDs generate significant localized heat. If unmanaged, this heat causes lumen depreciation, color shifting, and premature diode burnout. This heat sink profile draws thermal energy away from the LED chips and dissipates it into the surrounding air, while simultaneously providing a professional, dot-free optical finish when paired with a diffuser.

2. Technical Specifications & Material Data Of Extruded Aluminum Heat Sink Profile:

Undeniably, precise engineering requires precise data. Accordingly, the tables below detail the mechanical and thermal properties that our extrusion profiles deliver.

2.1 Mechanical & Dimensional Specs

2.2 Thermal & Optical Characteristics

3. Application Scenarios Of Extruded Aluminum Heat Sink Profile:

Aluminum channels are highly versatile, serving as the foundational building blocks for diverse lighting ecosystems across multiple industries.

3.1 Commercial & Architectural Lighting

For indoor environments, aesthetic integration and smooth light output are paramount.

3.1.1 Luxury Retail Displays

Seamlessly recessed into cabinetry, glass display cases, or shelving, the profile protects the LED strip while delivering flawless, dot-free linear light vectors to highlight high-end merchandise.

3.1.2 Corporate Office Ambient Lighting

Suspended from ceilings using steel wire kits, these profiles house high-lumen 12mm strips to create modern, glare-free primary lighting for conference rooms and open-plan workspaces.

3.2 Industrial & Outdoor Environments

In demanding environments, the profile’s structural integrity and thermal management take priority.

3.2.1 Waterproof Facade Illumination

Specifically, construction teams seal the heavy-anodized profiles with IP67/IP68 rated silicone and matching end caps. As a result, they safely illuminate building perimeters and bridges, resist harsh weather, and maintain thermal efficiency.

3.2.2 Factory Workstation Task Lighting

Integrated into heavy machinery or assembly line racking, the rugged aluminum housing withstands physical impacts while keeping 24/7 continuous industrial lighting cool and stable.

4. Advanced Manufacturing & Processing Of Extruded Aluminum Heat Sink Profile:

Achieving microscopic tolerances and superior surface finishes requires a state-of-the-art production pipeline.

4.1 Precision Aluminum Extrusion Process

First, our technicians preheat high-purity 6063 aluminum billets. Subsequently, our massive hydraulic presses force the metal through custom-hardened steel dies. Ultimately, this process creates a dense, structurally sound linear profile that features perfectly uniform wall thickness for optimal heat transfer.

4.2 Secondary CNC Machining & Fabrication

Standard profiles often require customization to fit specific architectural plans.

4.2.1 Custom Cut-to-Length Services

Using automated, high-speed non-ferrous saws, we provide millimetric precision cutting, ensuring zero burrs and perfectly flush joints for seamless long-run installations.

4.2.2 Automated Drilling and Milling

For custom mounting solutions or intricate wire-routing, our 5-axis CNC machines perform precision drilling, tapping, and miter-joint milling (45° or 90° corners).

4.3 Surface Finishing Technologies

The final treatment dictates both the look and the environmental resistance of the heat sink.

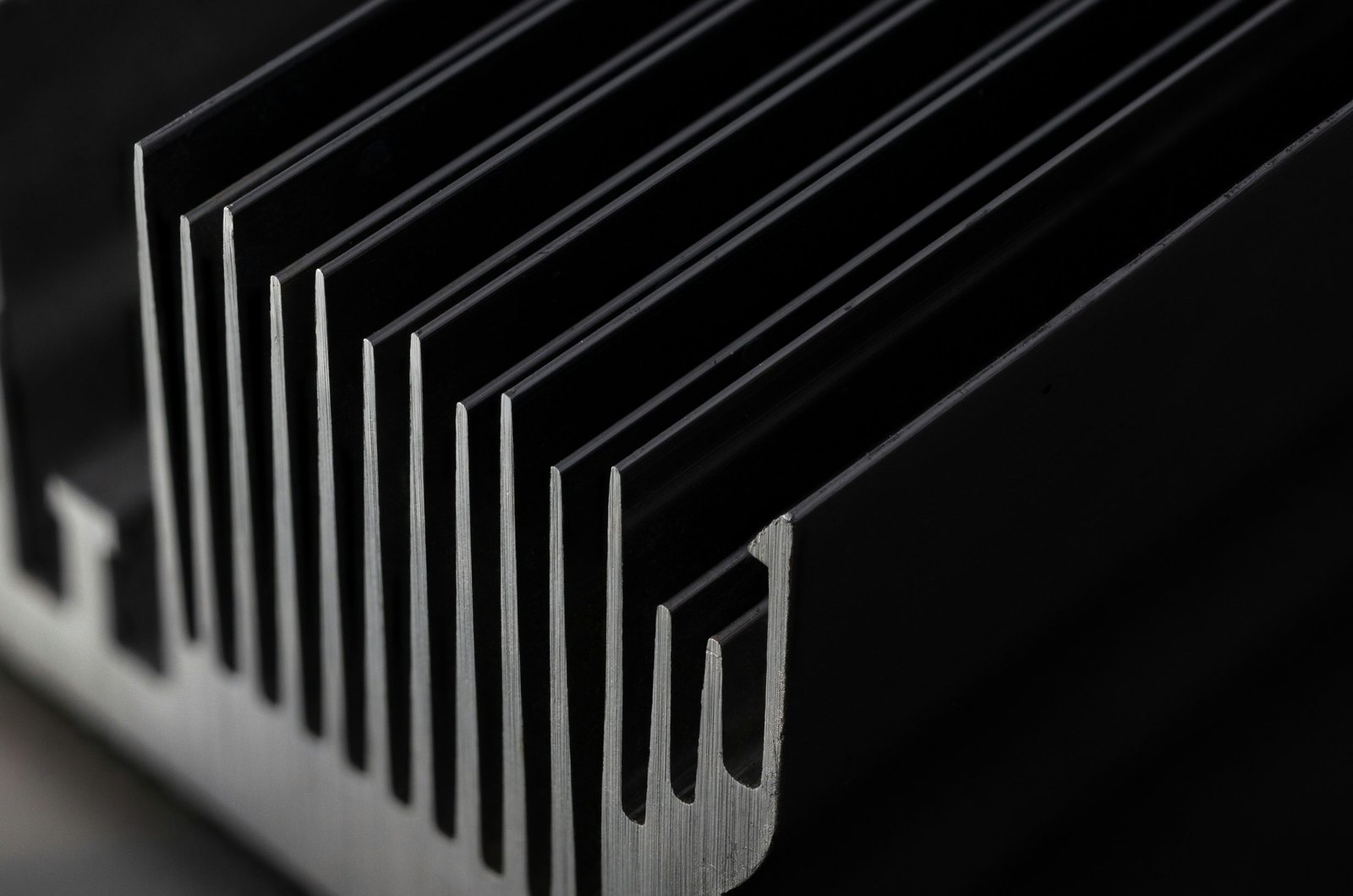

4.3.1 Electrochemical Anodizing

Profiles pass through an advanced acid bath to form a hardened anodic oxide layer. Available in clear (silver) or black, this process enhances wear resistance and slightly improves thermal emissivity.

4.3.2 Powder Coating

For projects requiring strict architectural color matching, we offer electrostatic powder coating in any custom RAL color, baked for maximum durability.

5. Core Advantages & Engineering Benefits Of Extruded Aluminum Heat Sink Profile:

Investing in a premium aluminum heat sink profile yields immediate and long-term dividends for any lighting project.

5.1 Superior Thermal Dissipation (Extended Lifespan)

With a thermal conductivity rating exceeding 200 W/m·K, this profile prevents localized heat concentration. It ensures LEDs operate up to 15°C cooler, safely extending the diode lifespan beyond 50,000 hours.

5.2 Optically Uniform Glow (Hotspot Elimination)

The mathematical relationship between the channel depth and the PC diffuser creates a diffusion chamber. This blends individual LED dots into a perfectly smooth, continuous, neon-like linear output without harsh glare.

5.3 Robust Mechanical Shielding

The rigid 6063-T5 aluminum structure acts as a protective armor. It physically safeguards fragile LED chips and PCB traces from accidental impacts, dust accumulation, and moisture ingress.

6. FAQs Of Extruded Aluminum Heat Sink Profile:

6.1 Installation & Compatibility

Q1: Can these profiles be seamlessly joined together for long continuous runs?

Absolutely. Long linear lighting runs are achieved by butt-jointing multiple profiles. Staggering the aluminum seams and the plastic diffuser seams eliminates light leaks entirely.

Q2: Does the profile support screwless mounting methods?

Yes. Besides metallic mounting clips, these lightweight profiles can be securely mounted to clean, flat surfaces using heavy-duty, double-sided VHB thermal tape or industrial construction adhesives.

Q3: Are these aluminum LED channels suitable for outdoor use?

The anodized aluminum itself is highly corrosion-resistant. However, for full waterproofing, you must use an IP65/IP68 rated LED strip and seal the profile’s end caps and diffuser with outdoor-grade silicone.

Q4: Can these extruded aluminum profiles be cut on-site?

Yes. The aluminum profiles can be cut on-site using a standard hacksaw or a miter saw with a fine-tooth metal blade. The plastic diffusers can be cut separately with sharp utility shears.

6.2 Performance & Design Choices

Q5: Why do 12mm LED strips strictly require an aluminum heat sink?

High-power 12mm LED strips generate substantial heat that degrades the 3M adhesive backing and burns out the diodes. The aluminum acts as a critical thermal conductor to dissipate this heat efficiently.

Q6: What is the difference between 6063-T5 and other aluminum alloys here?

6063-T5 is the industry gold standard for LED extrusions. It perfectly balances mechanical strength, excellent surface finish quality, and high thermal conductivity.

Q7: How do I select the right diffuser cover (Opal vs. Clear)?

An opal/milky diffuser hides individual LED dots for a smooth beam but reduces light output by roughly 30%. Clear covers offer maximum light transmission (up to 95%) but expose the raw diodes and create glare.

Q8: What is the benefit of a black anodized finish over raw aluminum?

Anodized finishes provide superior corrosion resistance and a premium aesthetic. Furthermore, black anodized surfaces exhibit a slightly higher thermal emissivity, marginally improving radiative cooling.

7. Partnering with Vanway-tech: Your Premier Extrusion Manufacturer

When scaling your lighting operations, the reliability of your supply chain is just as important as the quality of the product.

7.1 Why Choose Us as Your Extruded Aluminum Heat Sink Partner?

Vanway-tech stands out as an industry-leading manufacturer specializing in high-performance extruded aluminum heat sink profiles. Backed by comprehensive advanced manufacturing capabilities, we offer end-to-end vertical integration—seamlessly transitioning from custom tool and die design to high-volume precision extrusion and state-of-the-art CNC machining.

7.2 Strict Quality Assurance & Global Supply Chain

Our engineering team works directly with global clients to deliver tailored thermal solutions, ensuring strict adherence to international quality standards such as ISO9001 and RoHS compliance. By leveraging cutting-edge surface treatment technologies alongside a robust supply chain, Vanway-tech consistently provides the global lighting sector with cost-effective, high-tolerance, and exceptionally durable thermal components engineered for the most demanding applications.
