1. Product Overview Of Black Anodized Aluminum Heat Sink:

Fundamentally, we engineer the black anodized aluminum heat sink for 12V LED modules to provide superior thermal management for compact lighting systems. Specifically, our thermal experts design this precision component to rapidly extract and dissipate the intense thermal energy that high-power 12V circuit boards generate. Consequently, the specialized black anodic coating significantly boosts the radiative cooling capabilities of the base metal. Ultimately, this robust thermal profile actively protects delicate electronic components from premature failure and guarantees stable lumen output over time.

2. Technical Specifications and Material Data Of Black Anodized Aluminum Heat Sink:

Undeniably, precision manufacturing demands exact data. Accordingly, the table below details the specific mechanical and thermal properties that our black anodized profiles consistently deliver.

Core Engineering Parameters

3. Application Scenarios Of Black Anodized Aluminum Heat Sink:

Importantly, our black anodized heat sinks serve diverse lighting ecosystems. Thus, they actively support high-performance applications across multiple demanding industries.

Automotive and Marine Lighting

First, electrical mechanics integrate these robust heat sinks into custom 12V vehicle and marine lighting setups. Consequently, the heat sink aggressively manages internal temperatures inside extremely tight, unventilated headlight or cabin light enclosures.

Architectural and Commercial Signage

Additionally, lighting designers frequently utilize these stealthy components for outdoor illuminated signs and retail displays. Therefore, the sleek black finish perfectly hides the mounting hardware in the shadows while the aluminum frame continuously cools the high-brightness 12V modules.

4. Advanced Manufacturing and Processing Methods Of Black Anodized Aluminum Heat Sink:

Naturally, we utilize state-of-the-art production pipelines to build these advanced thermal solutions. Consequently, we expertly control every phase of creation.

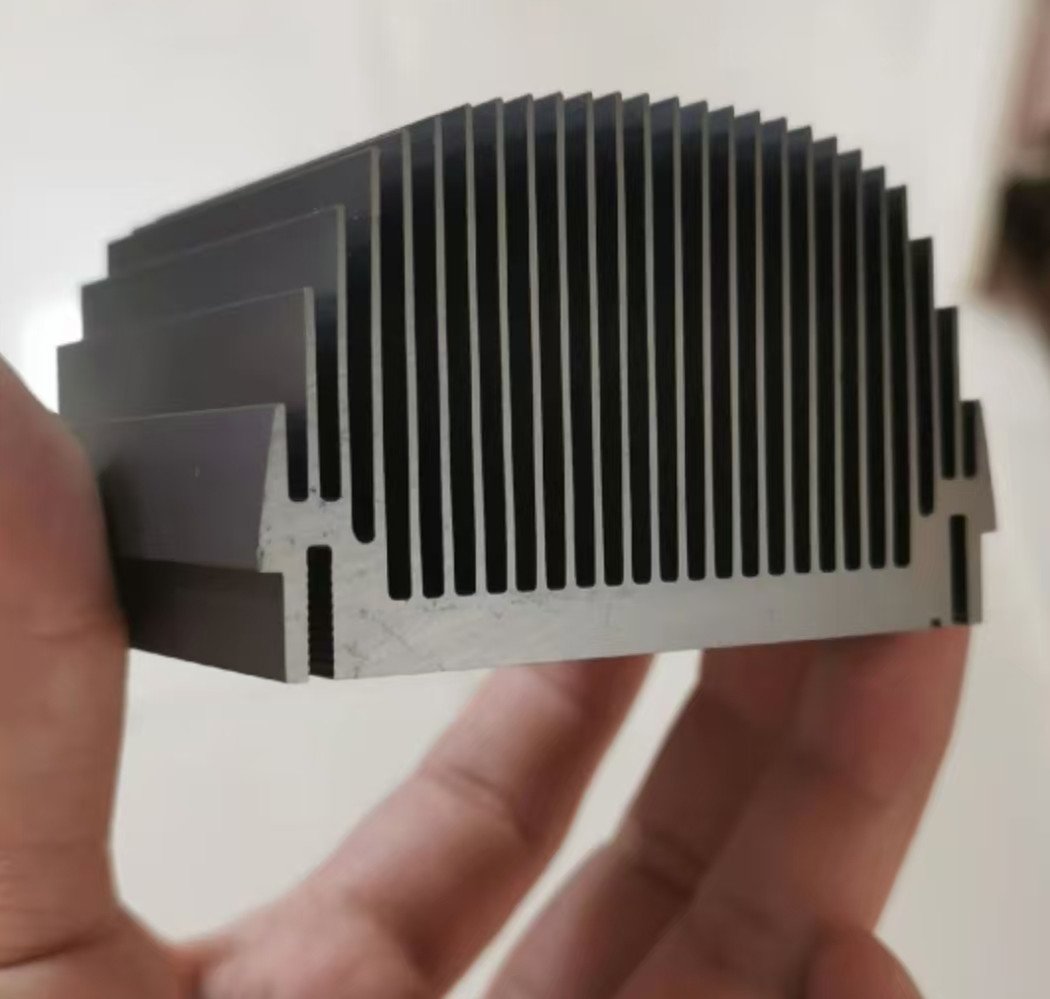

Precision Aluminum Extrusion

Initially, our massive hydraulic presses push heated 6063 aluminum billets through custom-engineered steel dies. Subsequently, this high-pressure process creates the optimal fin structure that maximizes ambient airflow.

Automated CNC Machining

Furthermore, our automated 5-axis CNC machines drill precise mounting holes and cut custom lengths. Thus, we ensure installers can easily and securely attach their specific 12V LED modules without secondary modifications.

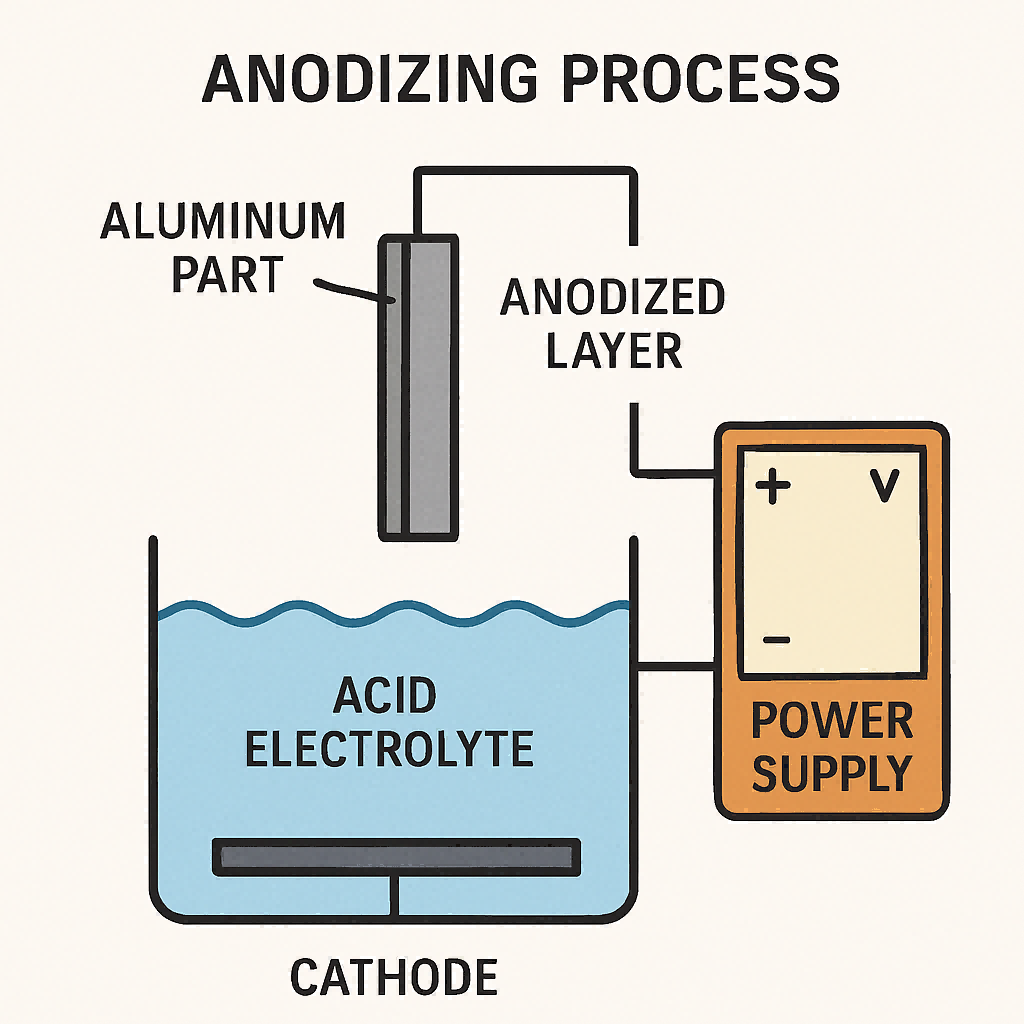

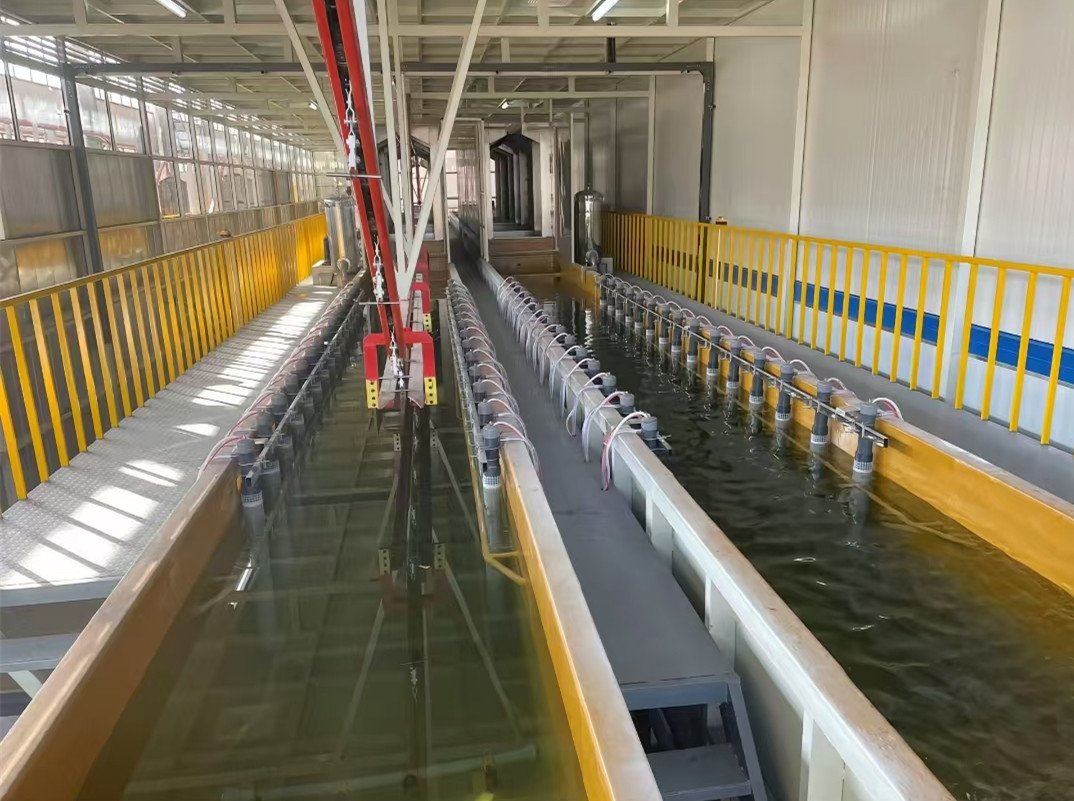

Electrochemical Black Anodizing

Finally, technicians submerge the raw aluminum profiles in a specialized electrochemical acid bath. Ultimately, this specific black anodizing process permanently hardens the exterior surface and drastically improves the metal’s natural heat radiation capabilities.

5. Core Advantages and Engineering Benefits

Ultimately, integrating our advanced thermal components provides immediate engineering benefits for lighting manufacturers.

Maximized Thermal Emissivity

Primarily, the black anodized surface actively absorbs and radiates heat away from the diode much faster than raw metal. Consequently, it easily outperforms standard mill-finish aluminum in passive cooling environments that lack active fan airflow.

Extended Diode Lifespan

Furthermore, the dense aluminum base rapidly pulls concentrated thermal energy away from the 12V module’s delicate solder joints. As a result, it prevents thermal throttling and safely extends the LED operating life well beyond 50,000 continuous hours.

6. Frequently Asked Questions

Q1: Why do engineers specify a black anodized finish for heat sinks?

A: Engineers choose black anodizing because it drastically increases the metal’s surface emissivity. Consequently, the dark surface radiates thermal energy into the surrounding air much faster than raw, shiny aluminum. Thus, it maximizes passive cooling efficiency for compact modules.

Q2: Can I easily cut this heat sink to a custom length on-site?

A: Yes, installers quickly cut the aluminum profile using a standard miter saw or hacksaw. Specifically, we recommend using a fine-tooth carbide metal blade to achieve the cleanest edge. Consequently, you easily adapt the extrusion for custom project lengths.

Q3: How do installers mount the 12V LED module to the aluminum?

A: Installers typically use thermally conductive adhesive tape or small machine screws to secure the module directly to the flat base. Furthermore, our factory optionally pre-drills custom mounting holes using our precision CNC machines. Therefore, you enjoy a remarkably seamless and rapid assembly process.

Q4: Does the black anodized layer provide electrical insulation?

A: Yes, the anodic oxide layer naturally acts as a strong electrical insulator. Consequently, it actively protects the 12V circuit board from accidental short circuits if a wire touches the metal frame. However, electricians must still follow proper wiring and grounding protocols.

Q5: Will the black color fade when placed in direct sunlight?

A: No, our Type II electrochemical anodizing process permanently alters the molecular structure of the aluminum surface. Therefore, the deep black color strongly resists UV degradation and completely prevents cosmetic fading. Ultimately, the component maintains its premium, professional appearance outdoors.

Q6: Which specific aluminum alloy do you use for this product?

A: We primarily manufacture these thermal profiles using premium 6063-T5 aluminum alloy. Specifically, this high-grade material provides an exceptional balance of structural strength and thermal conductivity. Thus, it consistently performs perfectly in demanding commercial lighting applications.

Q7: How much total heat can this specific profile dissipate?

A: The exact thermal dissipation metric strongly depends on the final cut length and the ambient environmental airflow. Generally, our standard profile effectively manages high-density 12V modules running between 10 and 30 watts. Our thermal engineers readily calculate precise thermal limits for your unique design layout.

Q8: Can Vanway-tech produce custom profile shapes for new projects?

A: Absolutely, our dedicated engineering team regularly designs custom extrusion dies for unique 12V LED modules. You simply send us your initial CAD drawings or thermal dissipation requirements. Subsequently, our factory rapidly manufactures your exact custom profile to strict specifications.

7. Partnering with Vanway-tech: Your Premier Manufacturing Partner

Notably, Vanway-tech leads the global market as a premier manufacturer of extruded aluminum heat sink profiles. Because we completely own and operate a fully integrated production facility, our engineers expertly control every manufacturing step from die creation to final surface treatment. Consequently, our dedicated team continuously delivers cost-effective, precision-machined thermal solutions that empower global lighting brands to achieve superior product reliability and dominate their respective markets.
